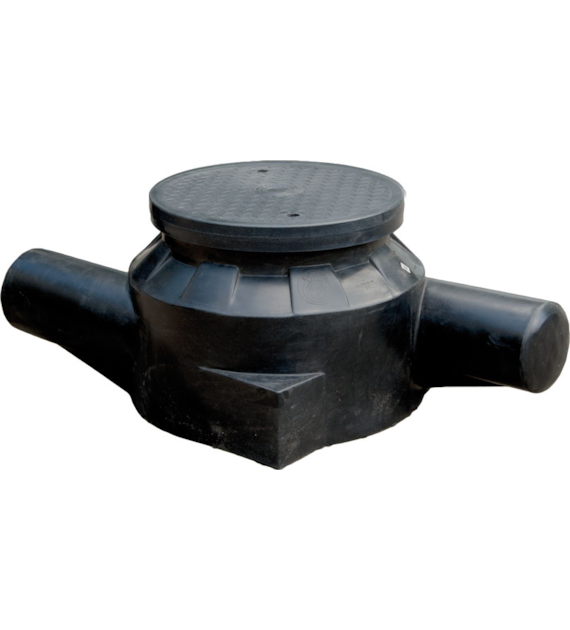

Zasobnik kablowy telekomunikacyjny ZK-2

Cable containers ZK2 with two dedicated spaces for sleeves are a reliable solution in the construction of telecommunication networks. They are installed along cable routes and at their terminations, serving to protect splice sleeves from mechanical damage and to store excess fiber optic cables in cable ducts. They serve as main lines, branching points, and junctions for all telecommunication cables.

The ZK2 container is equipped with dedicated spaces for two cable sleeves, allowing for the safe storage of fiber optic cable sections. This design ensures that the sleeves do not occupy space intended for cable storage, as they are placed into external tubes.

Technical specifications:

Material: polyethylene
Additional space for two cable sleeves
Safe storage of cable sections:

• Up to 8mm diameter - 400 meters
• 8-12mm diameter - 300 meters
• 12-15mm diameter - 150 meters
  Possibility to introduce cable ducts with diameters of 32mm and 40mm into the container body
  External dimensions: 1500x800x482mm
  Total weight: approx. 20kg – allows for manual installation by 1-2 persons
  Installation depth: 0.7-1.47 meters

Equipment:

ZK2 container body with two dedicated spaces for sleeves
Container cover with relieving bushing
Cover seal
Seals for pipes with diameters of 32/40mm – depending on requirements
