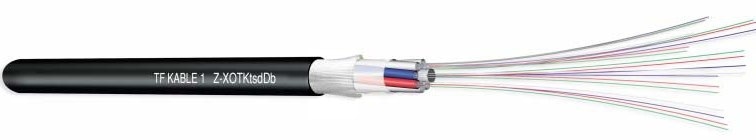

TELEFONIKA Kabel światłowodowy antygryzoniowy wzmocniony włóknami szklanymi Z-XOTKtsdDb 24J (2x12), tuba 1,8mm, średnica 9,5mm

Z-XOTKtsdDb Fibre Optic Cable – Durable, All-Dielectric and Rodent-Resistant

The Z-XOTKtsdDb fibre optic cable is a modern and reliable solution designed for the construction of outdoor telecommunications networks – long-haul, metropolitan and local networks. Thanks to its fully dielectric construction, it can be installed near medium- and high-voltage power lines without the risk of electromagnetic interference. It is ideally suited for installation in primary and secondary cable ducts, particularly in locations exposed to rodent activity.

Features and applications

The Z-XOTKtsd 12J (1x12)/1.8 cable is designed for outdoor installations, particularly:

• in Ø32 and Ø40 fibre optic ducts,

• in Ø110 primary cable ducts using the cable-blowing method,

• in locations requiring a fully dielectric solution – the cable can be installed near low-, medium- and high-voltage power lines.

The cable features:

• resistance to UV radiation, moisture and temperature fluctuations,

• a dry water-blocking system and hydrophobic gel inside the tube,

• a small diameter and low weight, facilitating transport and installation,

• excellent suitability for cable-blowing technology,

• metre markings and the option to customise cable identification.

Z-XOTKtsd cable construction a: central strength member – dielectric FRP rod, with or without a polyethylene coating b: loose tube – loose tube containing optical fibres and filled with hydrophobic gel c: optical fibre – single-mode fibre (J), dispersion-shifted single-mode fibre (Jn), multimode fibre (G/50) or multimode fibre (G/62.5) d: filler – polyethylene filler element e: cable core – all tubes and fillers stranded around the central strength member; the core consists of 6, 8, 12, 18 or 24 elements f: core water-blocking system – dry g: reinforcement – glass fibres surrounding the cable core h: ripcord – 2 ripcords for cutting and removing the cable sheath i: sheath – black HDPE outer sheath

Z-XOTKtsdDb cable construction

• Central strength member: dielectric FRP rod, with or without a polyethylene coating
• Optical fibres: single-mode fibres (J), dispersion-shifted single-mode fibres (Jn) and multimode fibres (G/50, G/62.5)
• Fibre optic tubes: loose tubes filled with hydrophobic gel, protecting the fibres against moisture
• Fillers: polyethylene filler elements
• Cable core: tubes and fillers stranded around the central strength member, comprising 6, 8, 12, 18 or 24 elements
• Core water-blocking system: dry
• Reinforcement: glass-fibre yarn increasing mechanical strength and providing protection against rodents
• Ripcords: 2 ripcords facilitating the removal of the outer sheath
• Outer sheath: black polyethylene (HDPE) sheath resistant to UV radiation, abrasion and environmental stress cracking

Key features and benefits

• Rodent resistance – thanks to the glass-fibre yarn reinforcement, the cable is effectively protected against mechanical damage caused by rodents.
• Fully dielectric construction – the absence of metal components allows the cable to be installed near power lines.
• High mechanical strength – the glass-fibre reinforcement provides almost three times greater tensile strength compared with cables without reinforcement.
• Environmental resistance – the HDPE sheath provides resistance to UV radiation, moisture, environmental stress cracking and abrasion.
• Protection against water penetration – the dry water-blocking system and thixotropic gel effectively prevent longitudinal moisture penetration.
• Versatile application – ideal for installation in cable ducts, cable pipelines and outdoor environments.
• Marking and identification – durable metre markings and the option to customise cable identification according to customer requirements.

Technical specifications (selected configurations)

Applications

The Z-XOTKtsdDb cable is suitable for:

• long-haul, metropolitan and campus telecommunications networks,
• installation in primary and secondary cable ducts,
• cable pipelines and routes exposed to rodent activity,
• locations with high levels of electromagnetic interference,
• installations near medium- and high-voltage power lines.

The cable is ideally suited for the transmission of data, voice and video signals across the full optical spectrum in all modern telecommunications systems.

Operating data

• Operating temperature: –40°C to +70°C
• Installation temperature: –15°C to +60°C
• Transport and storage temperature: –40°C to +70°C
• Manufacturing length: subject to agreement (standard length: 4 km)
• Packaging: wooden cable drums

The Z-XOTKtsdDb fibre optic cable is a durable, fully dielectric cable offering high mechanical strength and excellent resistance to environmental conditions. Thanks to its glass-fibre reinforcement, it is an excellent solution for projects requiring a long service life, reliable transmission and protection against rodents. It is a proven choice for telecommunications operators, installation companies and fibre optic network designers.
