The KM3-type splice enclosure is designed to provide durable and effective protection for telecom multipair cable joints (up to 70 pairs) against harmful environmental influences. It shields connections from moisture, contaminants, mechanical damage, and corrosion. Filled with a special sealing compound with excellent insulating and hydrophobic properties, the enclosure ensures complete tightness even in the most demanding conditions.
Installation requires no specialized tools and can be carried out in the field – underground, aerially, or indoors. The enclosure allows for the insertion of cables of various diameters.
Durable protection against moisture, dust, and mechanical damage
Weather-resistant sealing compound – resistant to aging, UV radiation, chemicals, and atmospheric factors
Quick installation (~60 seconds) without the need for specialized tools
Reusable – can be opened and closed multiple times without losing sealing properties
Chemically neutral – safe for cables, connectors, and the environment
Operating temperature range: from -10°C to +40°C
Telecom networks using multipair cables (up to 70 pairs)
Overhead, underground, and indoor installations
Locations exposed to varying environmental and weather conditions
Can be mounted on support wires or fixed surfaces
The KM3 enclosure enables fast and easy installation without special tools. Once the cable connection is made using UY connectors, the splice is placed into the bottom part of the enclosure. The upper cover is then applied and snapped into place. The enclosure can be fixed using cable ties, screws, or a nail – depending on the installation site. The installation takes approximately 60 seconds and can be performed at temperatures between -10°C and +40°C.
To open the enclosure, gently pry open the latches and separate the two halves. After modifying the connection, the enclosure can be reclosed. If necessary, the sealing compound can be replenished. The enclosure maintains its sealing properties even after multiple openings and closings.

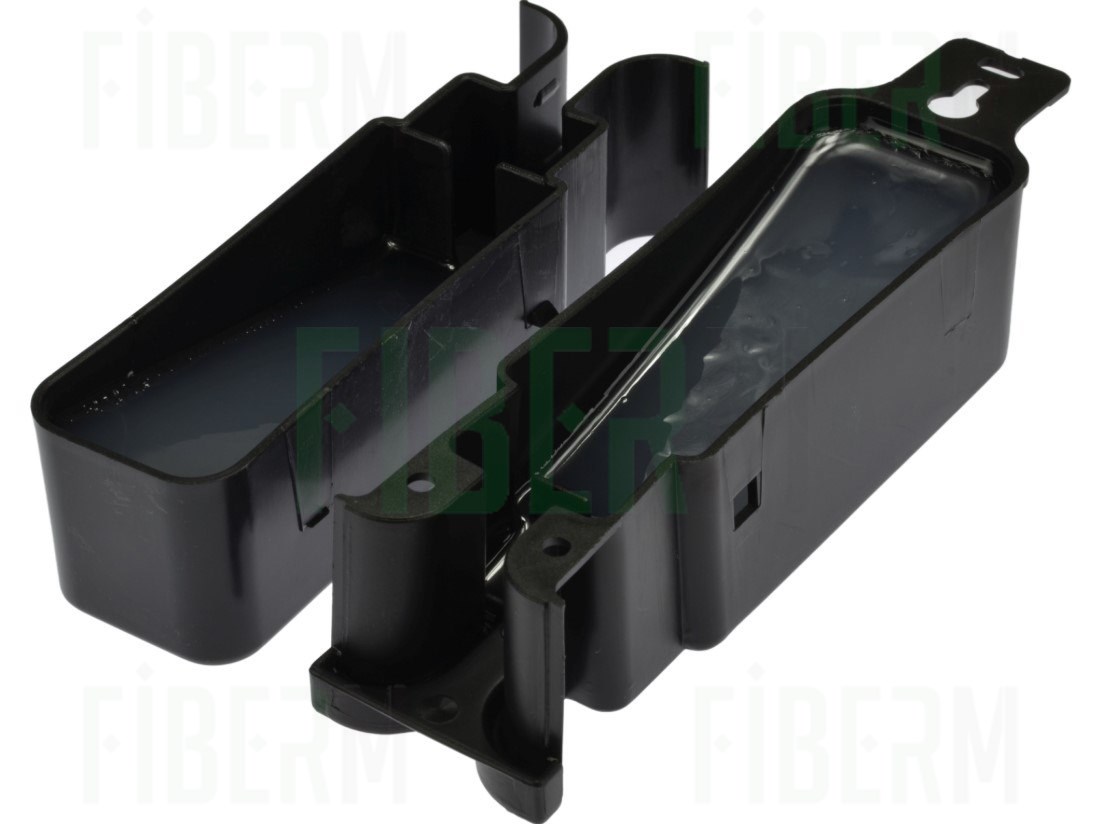

1 | Enclosure housing (top and bottom) filled with sealing compound |
2 | Screen continuity connector |
3 | Cable ties (2 pcs.) |
4 | Element to prevent splice displacement |
5 | Expansion plugs Ø 5 mm (2 pcs.) |
6 | Mounting screws (2 pcs.) |
7 | Galvanized nail (1 pc.) |
8 | Disposable protective gloves (1 pair) |
9 | Installation manual |
10 | Cardboard packaging |
To connect wires, use UY-type connectors (e.g., Scotchlok or 3M 9700-10), which are not included in the kit – available separately in our store.
