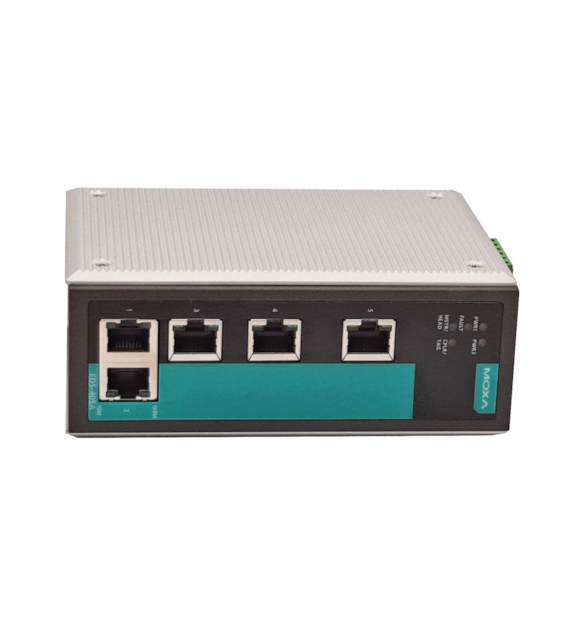

MOXA EDS-405A switch zarządzalny przemysłowy na szynę DIN 5x 10/100Tx

MOXA EDS-405A Managed Switch

The MOXA EDS-405A is a series of 5-port (copper/fiber) managed Ethernet switches designed for industrial applications. Utilizing switches from this series, you can quickly and easily build a redundant and reliable Ethernet network thanks to the implemented Moxa Turbo Ring V2 protocol, which enables network reconfiguration in less than 20 ms under full load.

Management of these switches is simple and straightforward via the Web interface, Telnet/Serial console, or Windows software. The manufacturer also offers devices specifically designed for telecommunications applications, characterized by the ability to be powered by redundant +/-24 VDC or +/-48 VDC voltage. The MOXA EDS-405A series switches provide a robust and convenient tool for creating redundant and reliable industrial Ethernet networks, even in very harsh external conditions (operating temperature range from -40 to +75°C for extended versions).

Key Features:

• Moxa Turbo Ring V2: Redundant, reliable ring architecture network with reconfiguration time always < 20 ms under full load or RSTP (IEEE802.1W).
• VLAN: Support for Port-based VLAN and IEEE 802.1Q VLAN for simple network segmentation.
• QoS: IEEE802.1p/1Q and TOS/DiffServ for increased network determinism.
• RMON: Enables network status monitoring.
• SNMP: Supports SNMP V1/V2c/V3 for convenient and integrated system monitoring and management.
• Port Mirroring: Copies traffic between ports and sends it to another port for easy monitoring and error troubleshooting.
• IGMP Snooping: Technology support.
• Notifications: Automatic event notifications via alarm relay or email.
• Easy Configuration: Via Web interface, Telnet/Serial console, and Windows software.

Technical Specifications:

• Standards:

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100Base FX
  • IEEE 802.3x for Flow Control
  • IEEE 802.1D for Spanning Tree Protocol
  • IEEE 802.1w for Rapid STP
  • IEEE 802.1p for Class of Service
  • IEEE 802.1Q VLAN

• Protocols:

  • IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client

• Ports:

  • RJ45: 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
  • Optical: 100BaseFX ports (SC/ST connectors)
  • Console: RS-232 (RJ45)

• LED Indicators:

  • PWR1, PWR2, FAULT, MASTER, COUPLER, 10/100M

• Alarm Relay:

  • DO1 relay output with current carrying capacity of 1A @ 24 VDC

• Power Supply:

  • 24 VDC (12 to 45 VDC), redundant power supply
  • For EDS-408A-3S-SC-48(-T) version: +/-24/+/-48 VDC (-60 to -19 VDC or 19 to 60 VDC), redundant power supply

• Current Consumption:

  • EDS-405A: 0.24 A @ 24 V
  • EDS-405A-MM/SS: 0.32 A @ 24 V
