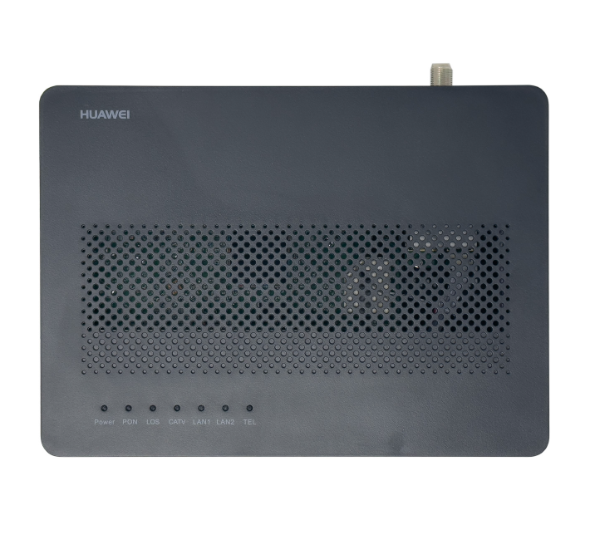

Huawei HG8122 GPON 1xGE 1xFE 1xRF

HG8122 – ONT Terminal for FTTH Network Operators

The Huawei HG8122 is a modern optical network terminal (ONT) designed for network operators implementing FTTH (Fiber to the Home) solutions. It provides end-users with fast access to broadband Internet, TV, and voice services. With GPON technology, the HG8122 enables high-speed data transmission at rates of:

• Up to 2.488 Gbit/s (downstream)
• Up to 1.244 Gbit/s (upstream)

The device features two gigabit Ethernet ports (GE), one telephone port (POTS), and a CATV port, allowing comprehensive support for Internet, TV, and voice services for both residential and SOHO (Small Office/Home Office) users.

ONT authorization is based on the serial number, password, or a combination of both. The software can be configured and updated locally via a web browser GUI. Remote management and updates are also supported via the OMCI protocol. Installation and configuration are quick and easy, with one-click setup available through the Huawei NMS management system.

HG8122 Key Features Performance and Connection Stability: GPON support for ultra-fast data transmission IPv6 support (dual-stack IPv4/IPv6 and DS-Lite) Advanced MAC address filtering for enhanced network security Support for PPPoE, DHCP, and static IP addressing (Layer 3) Flexible Configuration and Management: Network authentication via serial number, password, or both Local configuration and firmware updates via web-based GUI Remote management and updates using the OMCI protocol Simple installation with one-click configuration via Huawei NMS Extensive Connectivity Options: 2× GE RJ45 ports (1 Gbit/s and 100 Mbit/s) 1× POTS port (RJ11) – landline telephony support 1× CATV port (RG6) – cable TV support Support for wavelength blocking filters (WBF)

Technical Specifications:

• Receiver sensitivity: -27 dBm
• Wavelengths:

  • Upstream: 1310 nm
  • Downstream: 1490 nm
  • CATV: 1550 nm
• Power supply: 12V 2A input
• Power button: Yes

Ideal for Network Operators

The HG8122 is an excellent choice for network operators seeking a reliable, high-performance, and easy-to-manage ONT terminal. It enables the delivery of modern broadband services to homes, offices, and small businesses, providing customers with:

• High-speed Internet access
• HD-quality television
• Voice services

Thanks to its advanced networking capabilities and user-friendly configuration, the Huawei HG8122 is perfectly suited for modern FTTH deployments, ensuring seamless and high-quality data transmission for end-users.
