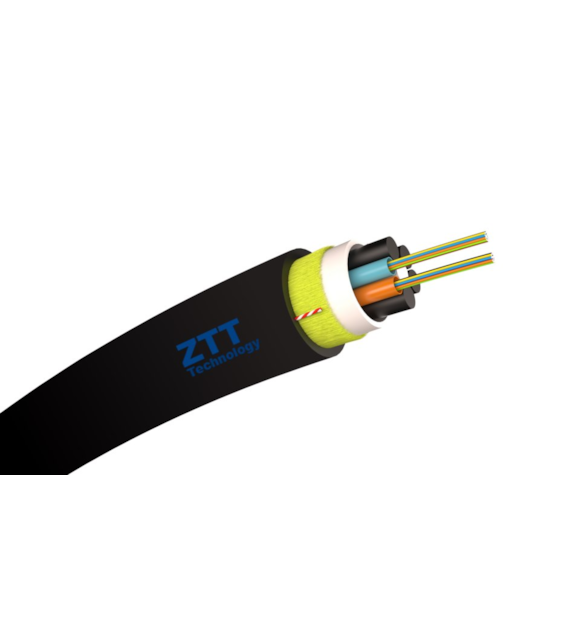

Zapłać 30 dni później z PRAGMA GOProfessional ADSS (All-Dielectric Self-Supporting) fiber optic cable with a multi-tube construction, designed for aerial installations on spans up to 90 meters and for use in telecommunication duct systems. The 36J (12F/T) model combines high mechanical strength with excellent transmission performance, ensuring stable and secure operation of fiber optic networks.
36 single-mode fibers (3 tubes × 12 fibers – 12F/T)
Central FRP (Fiber Reinforced Polymer) strength member Ø 2.5 mm
Aramid yarn reinforcement
Tubes filled with hydrophobic gel – protection against moisture and vibrations
3 fillers stabilizing the structure
Outer sheath: HDPE (black), UV-resistant
Ripcord for easy sheath removal
The cable is fully dielectric, allowing safe use in aerial installations without the need for grounding.
Fiber type: single-mode
Standard: G.652D (Zero Water Peak)
Fibers with reduced “water peak” ensure improved transmission across the full 1310–1550 nm spectrum, providing greater design flexibility and higher network performance.
Maximum installation tension: 2.7 kN
Crush resistance: 1.5 kN / 100 mm
Minimum bending radius: 110 mm
Outer diameter: 10.9 mm
Sheath thickness: 1.6 mm
Weight: 88 kg/km
Installation temperature: -15°C to 50°C
Operating temperature: -40°C to 70°C
The weather-resistant HDPE sheath ensures durability even under prolonged UV exposure and fluctuating temperatures.
Aerial networks (spans up to 90 m)
Telecommunication duct systems
FTTH/FTTx access and distribution networks
Operator and industrial infrastructure
IEC 60793-1
IEC 60793-2
IEC 60794-4-20
The ZTT 36J ADSS fiber optic cable is a durable and reliable solution for modern fiber optic networks, combining high mechanical strength with excellent data transmission performance.
