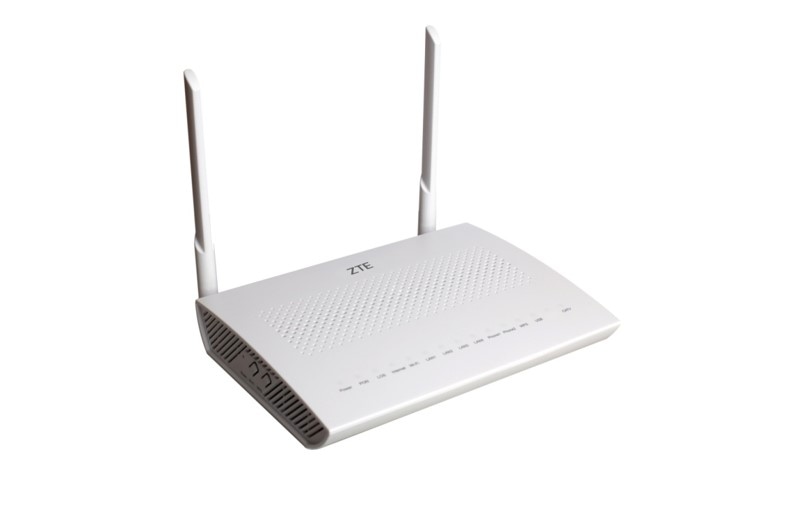

ZTE ZXHN F668 GPON ONT 4x GE, 1x RF CATV, 2x POTS, 1x USB, WiFi

ZTE ZXHN F668 GPON ONT – 4× Gigabit Ethernet, WiFi, 2× POTS, USB and CATV

ZTE ZXHN F668 is an advanced GPON ONT optical network terminal designed for use in FTTH fiber-optic networks. The device combines the functions of an optical terminal, router, WiFi access point, voice gateway and CATV interface, allowing multiple services to be delivered through a single device.

The terminal provides broadband Internet access and supports VoIP, IPTV and CATV services. Thanks to its high data forwarding performance, it can serve as the central element of a home or small business network infrastructure.

GPON interface

ZTE ZXHN F668 complies with the ITU-T G.984 standard and features 1 GPON port with an SC/APC connector. The interface provides data rates of up to 2.488 Gb/s downstream and 1.244 Gb/s upstream.

The terminal can be used as an FTTH network termination point, providing the user with access to broadband services delivered by the operator.

Optical interface parameters include:

• downstream wavelength: 1480–1500 nm,
• upstream wavelength: 1290–1330 nm,
• receiver sensitivity: -28 dBm,
• support for 8 T-CONTs,
• support for 32 GEM Ports.

4 Gigabit Ethernet ports

The terminal is equipped with 4 Gigabit Ethernet 10/100/1000Base-T ports, allowing wired connection of computers, TVs, IPTV set-top boxes, game consoles, switches and other network devices.

The Gigabit Ethernet ports make it possible to take advantage of the high bandwidth offered by the GPON network and provide a stable connection for bandwidth-intensive devices.

2.4 GHz WiFi

ZTE ZXHN F668 features an integrated WiFi access point operating in the 2.4 GHz band. The device supports the IEEE 802.11b/g/n standard and 2×2 MIMO technology, providing wireless Internet access for computers, smartphones, tablets, Smart TVs and other devices.

The terminal supports security mechanisms including:

• WEP,
• WPA-PSK,
• WPA2-PSK,
• mixed security mode,
• WPS.

This makes it possible to create a convenient and secure wireless local network.

POTS telephone ports

The device features 2 POTS ports, allowing analog telephones to be connected and used with VoIP voice services.

Two independent telephone interfaces make it possible to connect more voice devices without the need for additional VoIP gateways.

CATV interface

ZTE ZXHN F668 is also equipped with an RF CATV interface, enabling television signals to be delivered to compatible devices.

The combination of GPON, CATV and IPTV support allows the terminal to be used for television services delivered over FTTH infrastructure.

USB 2.0 port

The terminal features 1 USB 2.0 port, which can be used to connect compatible storage devices and other USB peripherals.

The device supports features including file sharing and DLNA, allowing connected resources to be accessed by devices within the local network.

Operating modes

ZTE ZXHN F668 can operate in several modes depending on the network configuration and operator requirements:

• Bridge – bridge mode,
• Router – router mode,
• AP – access point mode.

Flexible operating modes make it possible to adapt the terminal to various installation scenarios.

VLAN and network function support

ZTE ZXHN F668 offers extensive network functionality for traffic management and handling various services delivered by the operator.

The terminal supports, among others:

• 802.1Q VLAN,
• 802.1p,
• multicast functions,
• QoS,
• DHCP server and client,
• NAT,
• IPv4/IPv6 Dual Stack.

This allows the device to operate as the central network gateway for the user's local infrastructure.

Management and OAM

ZTE ZXHN F668 is equipped with mechanisms that simplify device configuration, administration and maintenance.

Available features include:

• local management via the web interface,
• OMCI management,
• TR-069 support.

This allows the operator to remotely configure and monitor the terminal and efficiently manage subscriber devices within an FTTH network.

Triple Play service support

The extensive connectivity of the ZTE ZXHN F668 enables the delivery of Triple Play services, including:

• high-speed Internet access,
• VoIP telephony,
• IPTV/CATV television services.

Thanks to the large number of interfaces, users can simultaneously connect computers, telephones, an IPTV set-top box, a TV, smartphones and other household devices.

High reliability

ZXHN F668 has been designed to provide stable access to broadband services. Its high data forwarding performance and extensive management functionality make it suitable for both home installations and small SOHO networks.

The ability to support multiple types of services through a single terminal simplifies the infrastructure and reduces the need for additional devices.

Design and installation

ZTE ZXHN F668 features an enclosure measuring 220 × 187 × 34 mm. Its design allows it to be used in various installation scenarios, including desktop installation, wall mounting and installation in network cabinets.

The terminal operates at temperatures from 0°C to 40°C, with relative humidity ranging from 5% to 95%.

Key features

• GPON ONT subscriber terminal,
• designed for FTTH networks,
• compliant with ITU-T G.984,
• 1 × GPON SC/APC,
• downstream up to 2.488 Gb/s,
• upstream up to 1.244 Gb/s,
• 4 × Gigabit Ethernet 10/100/1000Base-T,
• 2 × POTS,
• 1 × USB 2.0,
• 1 × RF CATV,
• 2.4 GHz WiFi,
• IEEE 802.11b/g/n,
• 2×2 MIMO technology,
• support for WEP, WPA-PSK and WPA2-PSK,
• WPS support,
• Bridge, Router and AP operating modes,
• support for 802.1Q VLAN and 802.1p,
• QoS and multicast,
• DHCP Server/Client,
• NAT,
• IPv4/IPv6 Dual Stack,
• DLNA and file sharing support,
• local, OMCI and TR-069 management,
• support for Internet, VoIP, IPTV and CATV services.
