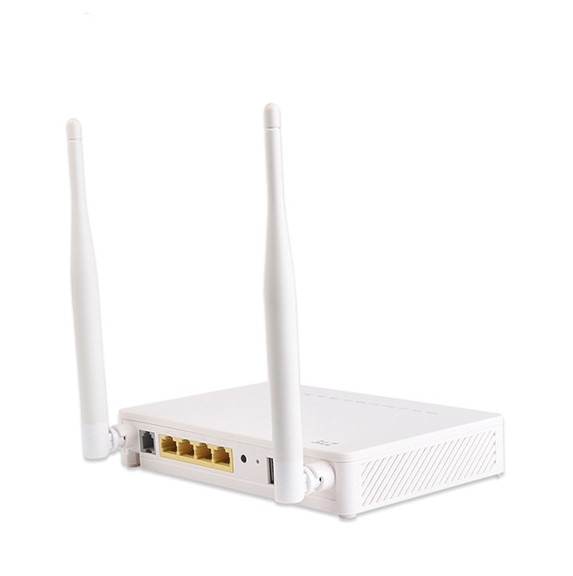

ZTE ZXHN F660 v8.0 GPON ONT 1x GE, 3x FE, 1x POTS, 1x USB, WiFi

ZTE F660 GPON ONT with WiFi, 4 Ethernet Ports, USB and POTS

ZTE F660 is a GPON ONT subscriber terminal designed for use in FTTH fiber optic networks. The device combines the functions of a GPON terminal, wired router, WiFi access point, VoIP telephone gateway and USB device support in a single compact enclosure.

The terminal is equipped with 1 GPON port with an SC/UPC connector, 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 USB 2.0 port and 1 RJ11 telephone port (POTS). This allows the ZTE F660 to simultaneously provide Internet access, wireless networking and telephone services.

High-Speed GPON Connection

The ZTE F660 operates with GPON infrastructure, providing subscribers with access to broadband services over fiber optic connections. The optical network connection is provided through the GPON SC/UPC port.

The terminal can serve as an endpoint device in FTTH networks, where the optical signal is delivered directly to the subscriber’s premises.

Ethernet Ports

The device features a total of 4 Ethernet ports, allowing computers, televisions, IPTV set-top boxes, IP cameras and other network devices to be connected.

Available ports include:

• 1 × Gigabit Ethernet 10/100/1000 Mb/s,
• 3 × Fast Ethernet 10/100 Mb/s.

The Gigabit LAN port makes it possible to take advantage of higher bandwidth for devices requiring a fast wired connection.

2.4 GHz WiFi with 2x2 MIMO Technology

The ZTE F660 features an integrated WiFi access point operating in the 2.4 GHz band. The device supports IEEE 802.11b/g/n wireless standards and 2x2 MIMO technology.

The maximum theoretical wireless transmission speed is up to 300 Mb/s. This allows computers, smartphones, tablets, Smart TVs and other WiFi-enabled devices to connect wirelessly.

POTS Telephony

The terminal is equipped with 1 RJ11 POTS port, allowing an analog telephone to be connected and voice services provided by the operator to be used.

By integrating ONT and telephone gateway functions, the ZTE F660 can provide both Internet access and telephony services over a single fiber optic infrastructure.

USB 2.0 Port

The device also features a USB 2.0 port, expanding the terminal’s capabilities and allowing compatible USB devices to be connected, depending on the installed firmware and the operator’s configuration.

Compact Design

The ZTE F660 is housed in a compact enclosure measuring 180 × 125 × 35 mm. The device weighs only 0.25 kg, making it easy to install in a house, apartment, office or small network access point.

The device is powered by 12 V DC and has a maximum power consumption of 11 W.

Key Features

• GPON ONT subscriber terminal,
• GPON SC/UPC fiber optic port,
• 1 × Gigabit Ethernet 10/100/1000 Mb/s,
• 3 × Fast Ethernet 10/100 Mb/s,
• 1 × USB 2.0,
• 1 × RJ11 POTS,
• 2.4 GHz WiFi,
• IEEE 802.11b/g/n wireless standards,
• 2x2 MIMO technology,
• maximum theoretical WiFi speed of up to 300 Mb/s,
• compact enclosure,
• 12 V DC power supply.
