WIREX Kabel instalacyjny zewnętrzny U/UTP CAT5E PE pudełko 305metrów WIC-5-U-PE-30-BL

WIREX Installation Cables – Reliability and High Quality

WIREX installation cables are synonymous with high quality, durability, and stable parameters, ensuring reliable performance throughout their entire service life. The product is designed for the most demanding structured cabling systems, meeting the highest industry standards. Thanks to compliance with the CAT5E category specification, these cables support a wide range of data transmission protocols, including 1000BaseT as well as PoE and PoE+ power standards.

.

Purpose and Application WIREX installation cables perform exceptionally well in a variety of environments—from offices and commercial buildings to data centers and network infrastructure that require stable and reliable connections. Thanks to their design, they are suitable for use in both new installations and upgraded network systems.

Key Product Features

• 100% Copper – The conductor is made entirely of high-quality copper, ensuring minimal signal loss and excellent transmission parameters.

• Resistance to Mechanical Damage – The robust construction provides tensile strength up to 60 N, resulting in reliability even in challenging installation conditions.

• Optimal Flexibility and Ease of Installation – A bending radius of 50 mm allows for efficient installation even in difficult mounting environments.

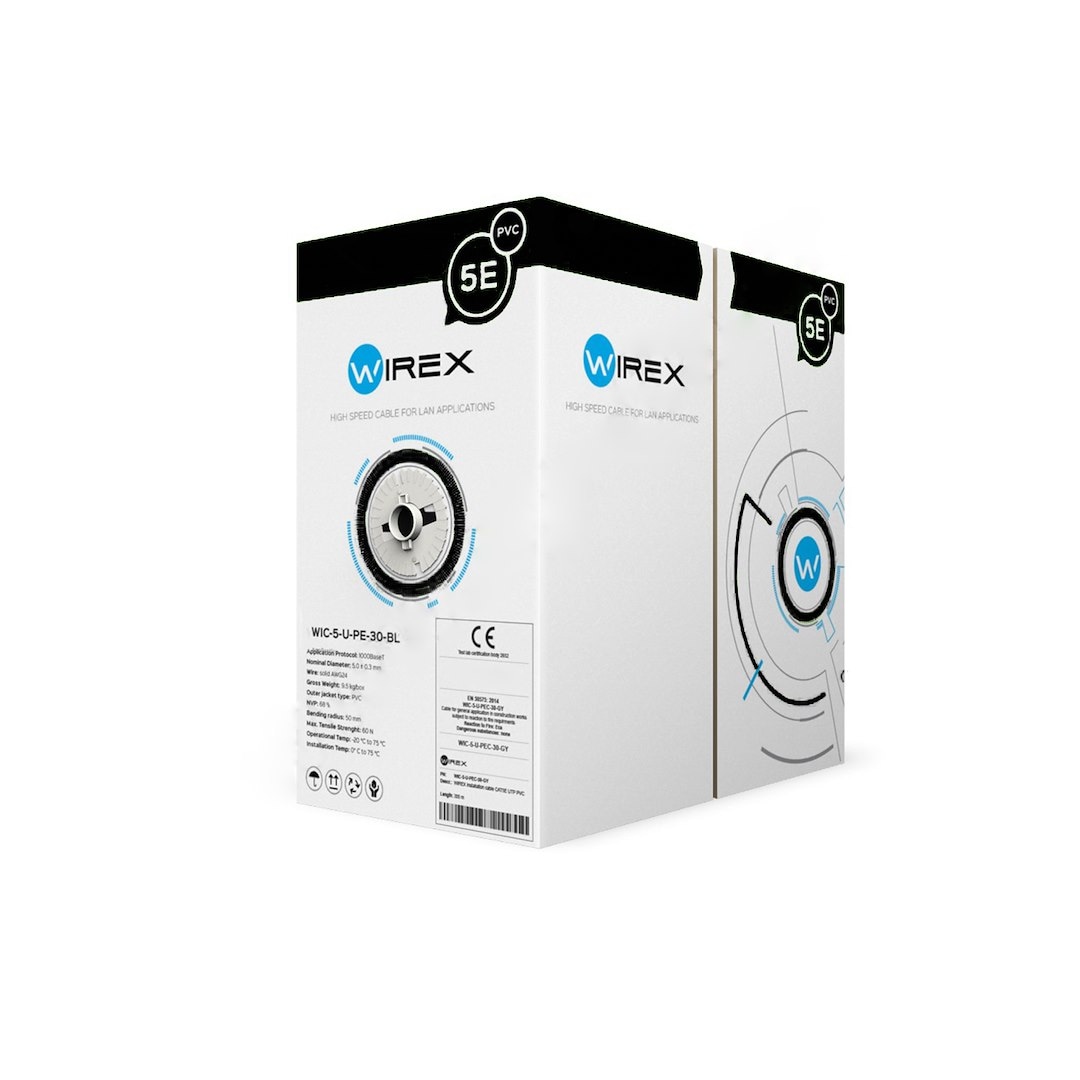

• Strong Packaging – The cables are packed in durable cartons, making transport easier and allowing for convenient cable dispensing during installation.

Technical Specification Cable Type: UTP (Unshielded Twisted Pair – unshielded) Conductor Wire: Copper, AWG24 (0.5 ± 0.01 mm) Insulation: HDPE (0.9 ± 0.08 mm) Protective Tape: PET (0.02 mm) Cable Diameter: 5.0 ± 0.3 mm Sheath Color: Black (RAL 9005) Bandwidth: 100 MHz Supported Protocols: 1000BaseT Supported PoE Standards: PoE, PoE+ Standards and Norms: ANSI/TIA 568, ISO/IEC 11801, EN 50173 Category: CAT5E Shielding Variant: U/UTP Tensile Strength: Max. 60 N Minimum Bend Radius: 50 mm Installation Temperature: 0 to +70°C Operating Temperature: -40 to +70°C Conductor Resistance: Max. 9.5 Ω/100 m Insulation Resistance: Min. 5000 MΩ·km (at DC 500 V/1 min) Dielectric Strength: 1 kV (at DC 1 min, core-to-conductor) Cable Weight: 25 kg/km

Why Choose WIREX Cables?

• Reliability – Guaranteed stability of parameters throughout the entire service life

• Versatility – Suitable for use in various environments and cabling systems

• Easy installation – Flexibility and bend resistance make installation easier.

• High quality – Meets strict quality standards, ensuring safe and efficient data transmission.

WIREX installation cables are an excellent choice for professionals and installers seeking durable, efficient, and easy-to-install network wires. Choose WIREX and opt for quality that translates into the reliability of your network!
