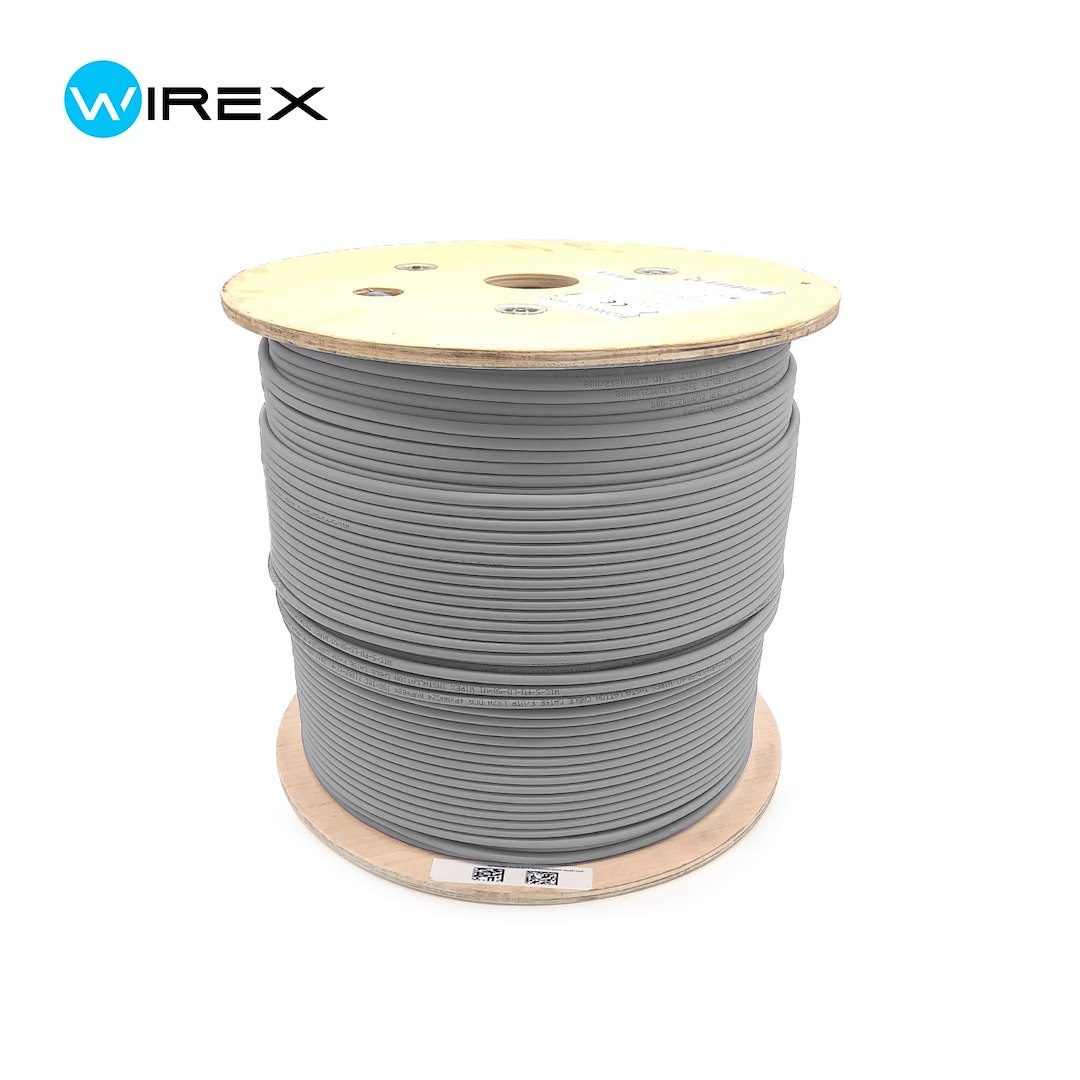

WIREX Kabel instalacyjny F/UTP CAT6 PVC Eca rolka 500metrów WIC-6-FU-PEC-50-GY

WIREX Installation Cables – Reliability and High Quality

WIREX installation cables are synonymous with top-tier quality, durability, and parameter stability, ensuring reliable performance throughout the entire service life. Designed for the most demanding structured cabling systems, these cables meet the highest industry standards. Compliant with CAT6 specifications, they support a wide range of data transmission protocols including 1000BaseT, 1000BaseTX, as well as PoE and PoE+ power standards.

Purpose and Application

WIREX installation cables are ideal for various environments—from offices and commercial buildings to data centers and network infrastructure that require stable and failure-free connectivity. Thanks to their robust design, they are suitable for both new installations and network system upgrades.

Key Product Features

• 100% Copper – The conductor is made entirely of high-quality copper, ensuring minimal signal loss and excellent transmission performance.

• Mechanical Damage Resistance – Solid construction offers tensile strength up to 80 N, providing reliability even in tough installation conditions.

• Optimal Flexibility and Easy Installation – A bending radius of 50 mm allows for smooth installation, even in tight or challenging spaces.

• Durable Packaging – Supplied on a wooden reel, which facilitates easy cable handling and ensures secure transportation.

Technical Specifications

• Conductor: Copper AWG23, 0.57 ± 0.01 mmm

• Insulation: HDPE, 1.1 ± 0.08 mm

• Protective Tape: PET, 0.02 mm

• Shielding: Aluminum foil, 0.06 mm

• Ground Wire: Tinned copper, 0.4 mm

• Cable Diameter: 7.6 ± 0.5 mm

• Jacket Color: RAL 7035 Grey

• Link Bandwidth: 250 MHz

• Supported Protocols: 1000BaseT, 1000BaseTX

• PoE Standards: PoE, PoE+

• Compliance Standards: ANSI/TIA 568, ISO/IEC 11801, EN 50173

• Category: CAT6

• Shielding Type: F/UTP

• Tensile Strength: Max. 80 N

• Bending Radius: 50 mm

• Cable Weight: 52 kg/km

• Installation Temperature: 0 to +75°C

• Operating Temperature: -20 to +75°C

• Conductor Resistance: Max. 9.5 Ω/100 m

• Insulation Resistance: Min. 5000 MΩ·km (at DC 500 V/1 min)

• Dielectric Strength: 1 kV (at DC 1 min, core-to-core)

• Capacitance: Max. 5.6 nF/100 m

• Signal Delay Skew: Max. 45 ns/100 m (at 1 MHz – 100 MHz)

• NVP: 69%

Copper conductor Conductor insulation Protective foil Shielding foil Grounding wire Rip cord Central plastic cross Outer jacket

Why Choose WIREX Cables?

• Reliability – Guaranteed parameter stability throughout the product's lifecycle.

• Versatility – Suitable for various environments and structured cabling systems.

• Ease of Installation – Flexible and bend-resistant design simplifies installation.

• High Quality – Meets rigorous quality standards for safe and efficient data transmission.

WIREX installation cables are the perfect choice for professionals and installers seeking durable, high-performance, and easy-to-install network cabling solutions. Choose WIREX and invest in quality that ensures the reliability of your network!
