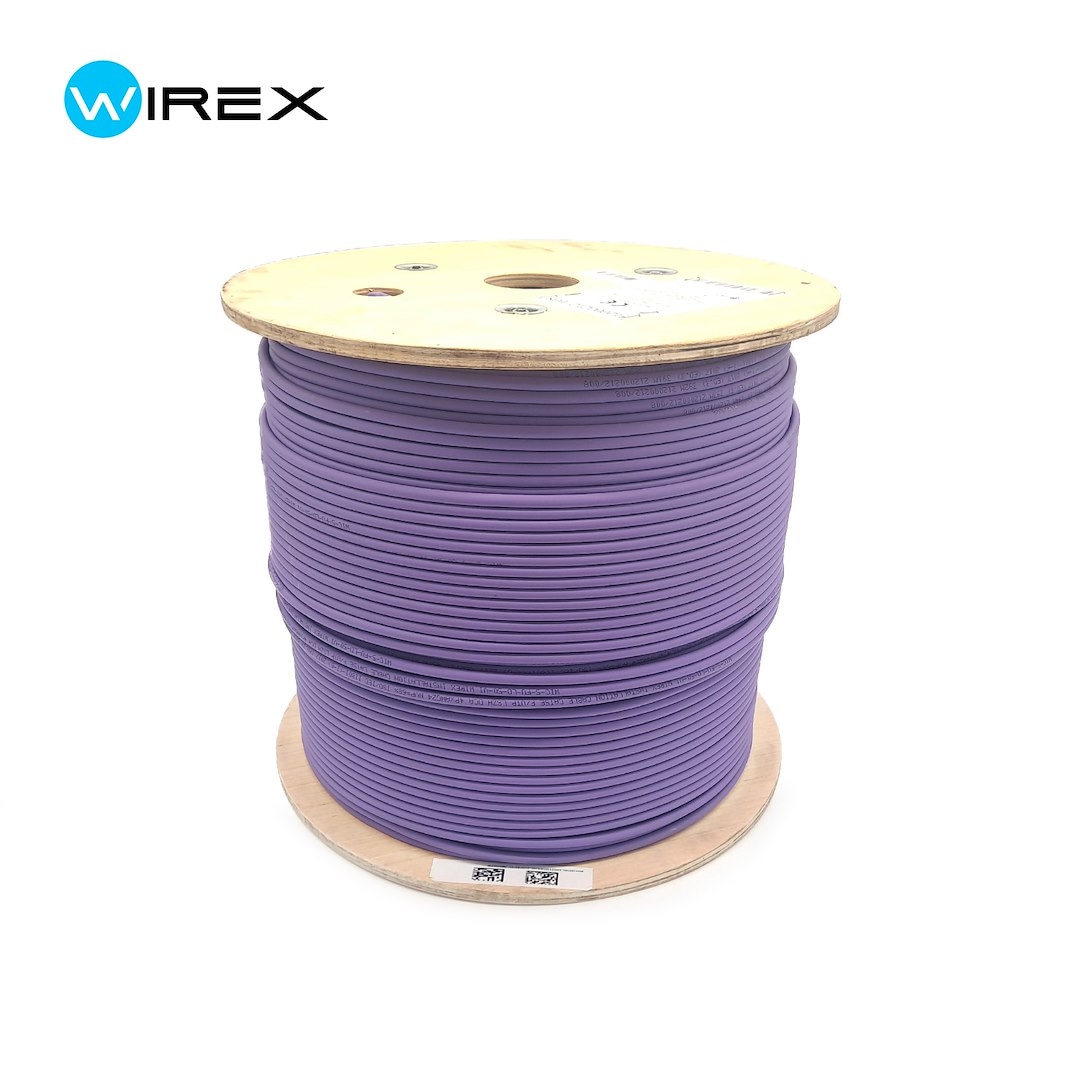

WIREX Kabel instalacyjny F/UTP CAT5E LSOH / Dca rolka 500metrów WIC-5-FU-LD-50-VI

WIREX installation cables are distinguished by high reliability and stable parameters throughout the entire lifespan of a metallic data network. They support the most demanding transmission protocols compliant with CAT5E cable standards.

This type of cable can be installed in various environments, such as offices and data centers. It is supplied in color-coded packaging, which makes identification easier, especially in places where several types of cables are used. For user convenience, the meter marking is indicated from 0 to 500 meters.

Technical Specification

Cable Construction:

• Conductor: Copper wire AWG24 (0.51 ± 0.01 mm)
• Insulation: HDPE (1.0 ± 0.08 mm)
• Protective tape: PET (0.02 mm)
• Shielding: Aluminum foil (0.06 mm)
• Ground wire: Tinned copper (0.4 mm)
• Outer sheath thickness: 0.5 mm
• Cable diameter: 6.0 ± 0.3 mm
• Sheath color: Grey RAL 7035

Electrical Properties:

• Conductor resistance: Max. 9.5 Ω/100 m
• Insulation resistance: Min. 5000 MΩ*km (DC 500V/1 min)
• Dielectric strength: 1 kV (DC 1 min, conductor-to-conductor)
• Capacitance: Max. 5.6 nF/100 m
• Signal delay skew: Max. 45 ns/100 m
• NVP (Nominal Velocity of Propagation): 68%

Technical Parameters:

• Bandwidth: 100 MHz
• Supported protocols: 1000BaseT
• Supported PoE standards: PoE, PoE+
• Compliance with standards: ANSI/TIA 568, ISO/IEC 11801, EN 50173
• Length marking: 0–500 m
• Flame retardant classification: CPR DCA
• Category: CAT5E
• Shielding type: F/UTP
• Sheath: LSOH (Low Smoke, Zero Halogen)

Mechanical Properties:

• Tensile strength: Max. 60 N
• Minimum bending radius: 50 mm
• Cable weight: 39 kg/km
• Packaging: 500 m spool
• Installation temperature: 0 to +75 °C
• Operating temperature: -20 to +75 °C

The WIREX CAT5E F/UTP cable is an excellent choice for professional and industrial network installations, providing high performance and reliability in every demanding application.
