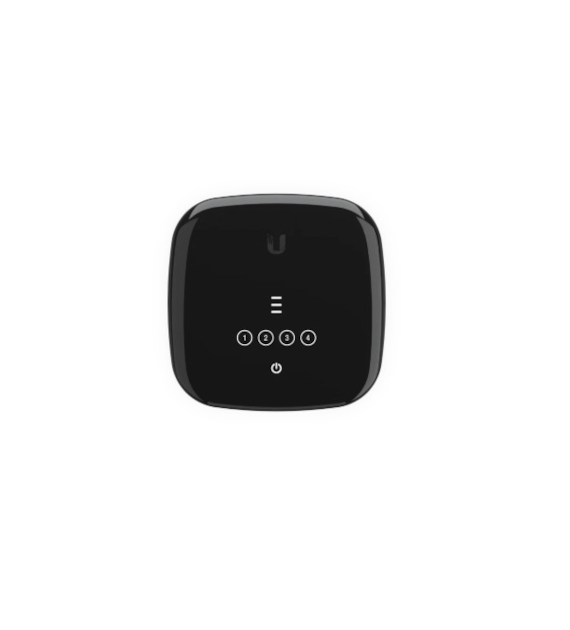

The Ubiquiti UFiber WiFi6 (UF-WiFi6) is an advanced ONU/ONT customer terminal that delivers ultra-fast GPON fiber connections and modern wireless connectivity via the WiFi 6 standard. It's a comprehensive solution for FTTH providers looking to offer their customers reliable internet, TV, and voice services — all in one compact device.
Fully compatible with Ubiquiti’s OLT terminals (UF-OLT, UF-OLT-4), this unit can serve up to 128 clients from a single GPON port, with a transmission range of up to 20 kilometers — ensuring top-tier stability and performance.
Fast GPON Connectivity: Downstream up to 2.488 Gbps, upstream up to 1.244 Gbps
WiFi 6 Standard (802.11ax): Speeds up to 1500 Mbps (2.4 GHz: up to 300 Mbps, 5 GHz: up to 1200 Mbps)
4x Gigabit Ethernet LAN Ports (RJ45): VLAN support included
SC/APC GPON WAN Port: For fiber optic network connectivity
Power Input: 24V passive PoE or USB-C (power adapter included)
Advanced Layer 2/3 Features: NAT, routing, firewall, VLAN, monitoring
Built-in 2x2 MIMO Antennas: Gain: 1 dBi (2.4 GHz), 3 dBi (5 GHz)
UFiber WiFi6 operates within Ubiquiti’s closed GPON ecosystem, ensuring full compatibility and stable operation. Setup is managed through an intuitive web interface or the mobile UISP app.
WiFi 6 (802.11ax) support with MU-MIMO and OFDMA technologies allows for efficient handling of multiple connected devices with minimal latency — ideal for homes or small offices with many wireless clients.
The device can be powered via 24V passive PoE or 5V USB-C (adapter included), offering flexibility for installation — even in locations without traditional power outlets.
Dimensions: 140.8 x 141.5 x 31.65 mm
Weight: 415 g
Processor: MIPS 1004, Dual-Core, 900 MHz
RAM: 256 MB
Ethernet Ports: 4x RJ45 (10/100/1000 Mbps)
Fiber Port: 1x SC/APC (GPON, ITU-T G.984)
Power Input: 24V DC via PoE or 5V DC via USB-C, 3A (power adapter included)
Max Power Consumption: 11 W
Input Voltage Range: 10–30 V DC (PoE) / 5 V DC (USB-C)
Operating Temperature: -15°C to +45°C
Humidity Tolerance: 10%–90% (non-condensing)
FTTH / GPON networks
High-performance home and small office networks
Installations requiring long fiber runs (up to 20 km)
Triple-play services (Internet, VoIP, IPTV)
Ubiquiti UFiber WiFi6 is a reliable and high-performance solution that combines GPON fiber access with modern WiFi 6 connectivity — all in a sleek and functional design. It's the ideal choice for ISP operators and demanding end-users alike.
