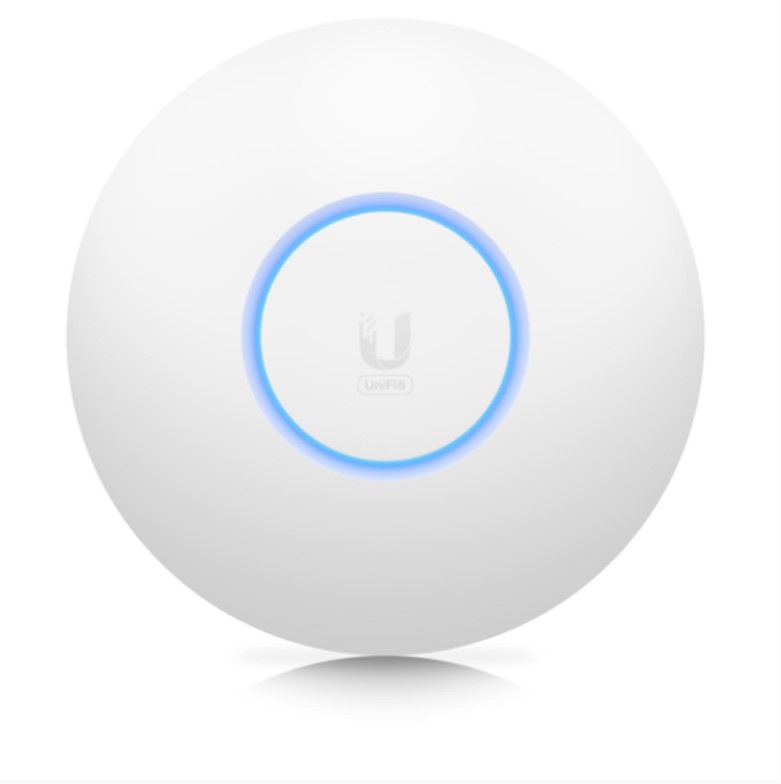

Product Description: Ubiquiti UniFi U6+ (U6-Plus)
The Ubiquiti UniFi U6+ (U6-Plus) is a high-performance access point operating on the 802.11ax standard, leveraging advanced WiFi 6 technology. This ensures a powerful wireless network range in corporate environments.
Key Features:
- Dual-stream, high-performance Wi-Fi 6 technology
- 5 GHz band: 2x2 MU-MIMO and OFDMA with a radio speed of up to 2402 Mbps
- 2.4 GHz band: 2x2 MIMO with a radio speed of up to 573.5 Mbps
- Powered by PoE 802.3at (PoE injector not included)
- Compatible with UAP-nanoHD covers and recessed mounting accessories
- Supports up to 300 clients simultaneously
The UniFi U6+ seamlessly integrates into any environment. It can be mounted indoors and, with its compact, nano-sized design, can utilize nanoHD covers and mounting accessories.
Management:
The device can be managed through the latest UniFi controller. This is free software that can be installed on popular operating systems such as Linux, Windows, and MacOS. The controller is also available as ready-to-use hardware – UniFi Cloud Key or UniFi Dream Machine. It allows for management and monitoring of networks of devices compatible with the UniFi platform. This solution scales perfectly – from small SOHO applications to large corporate networks with hundreds of access points. The U6-Plus access point is managed by the UniFi controller: UniFi Network Controller version 7.3.76 or newer.
Technical Specifications:
- Model: Ubiquiti UniFi U6+ (U6-Plus)
- Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3")
- Weight: 338 g (0.75 lb); with mounting 413 g (0.91 lb)
- Housing Material: Polycarbonate and aluminum
- Mounting Material: ABS, SGCC steel
- Interface: Ethernet in-Band
- Ports: 1x Gigabit Ethernet port 10/100/1000 Mbps RJ45
- Button: Factory reset
- LED: White/Blue
- Power Method: 802.3af PoE, Passive PoE (48V)
- Power Supply: 802.3af PoE, 48V, 0.32A PoE adapter (not included)
- Supported Voltage Range: 44 to 57 V DC
- Max. Power Consumption: 9 W
- Max. TX Power:
- 2.4 GHz: 23 dBm
- 5 GHz: 23 dBm
- MIMO:
- Throughput:
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 2402 Mbps
- Antenna Gain:
- 2.4 GHz: 3 dBi
- 5 GHz: 5.4 dBi
- Certifications: CE, FCC, IC
- Operating Temperature: -30 to 60 °C
- Humidity: 5 - 95% non-condensing
- Wi-Fi Standards: 802.11a/b/g, Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Yes
- Maximum Concurrent Clients: 300+
The Ubiquiti UniFi U6+ is the ideal solution for businesses that require a reliable, fast, and secure wireless network. With advanced Wi-Fi 6 technologies and versatile management capabilities, the U6-Plus meets the needs of both small and large enterprises.
