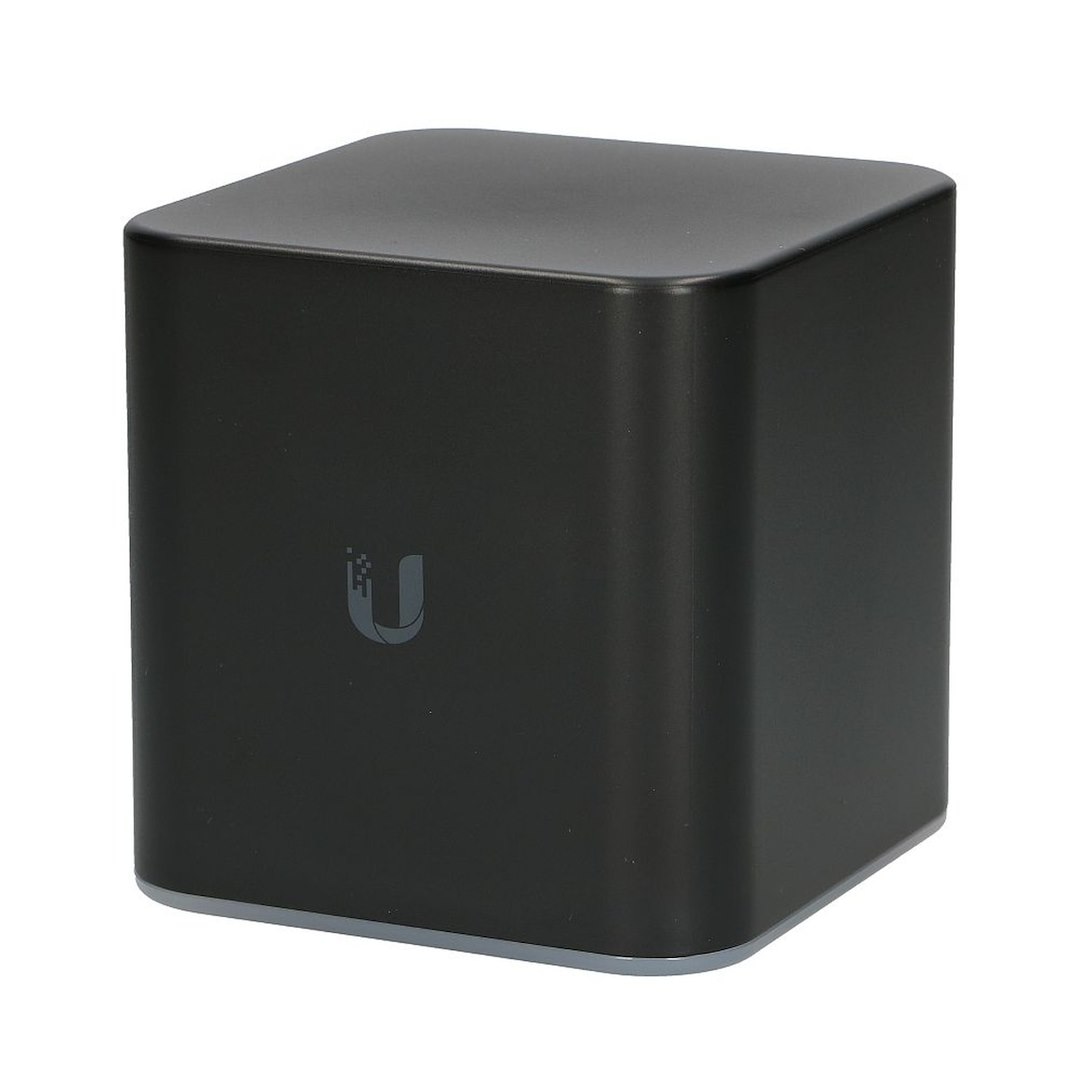

UBIQUITI AIRCUBE ACB-AC HOME WIFI ACCESS POINT

Ubiquiti (ACB-AC) airCube™

The Ubiquiti (ACB-AC) airCube™ is a wireless access point that offers a highly efficient price-to-performance ratio, designed for customer applications.

Super Antenna

The innovative super antenna ensures coverage over a large area, beyond typical Wi-Fi access points.

Key Features:

• 4 Gigabit Ethernet ports
• 24V PoE Passthrough for airMAX CPE devices
• Dual-Band, 802.11ac, 2x2 MIMO technology
• Up to 300 Mbps on the 2.4 GHz band
• Up to 866.7 Mbps on the 5 GHz band
• Powered by 24V Passive PoE or included power adapter

Specifications:

• Dimensions: 87.80 x 89.50 x 89.25 mm
• Weight: 280 g
• Power Input: 24VDC
• Power Method: 24VDC, 0.83A or PoE 24V on LAN port 1
• Supported Voltage Range: 22-26V
• Maximum Power Consumption: 8.5W
• PoE Output: Manageable 24V PoE output (+4, 5; -7, 8) on WAN port
• Management Interface: Wi-Fi / Ethernet
• Network Interfaces: 4 Gigabit Ethernet ports
• LED: Status
• Maximum TX Power: 22 dBm
• Antenna Gain: 2.4 GHz: 4 dBi, 5 GHz: 5 dBi
• Maximum Speed: 2.4 GHz: 300 Mbps, 5 GHz: 866.7 Mbps
• Enclosure: Black plastic
• ESD/EMP Protection: ±24 kV
• Operating Temperature: -10 to 50°C
• Humidity: 5 to 95%, non-condensing
• Certifications: CE, FCC, IC

The Ubiquiti airCube™ is the ideal solution for users seeking an efficient and reliable Wi-Fi access point with extensive coverage.
