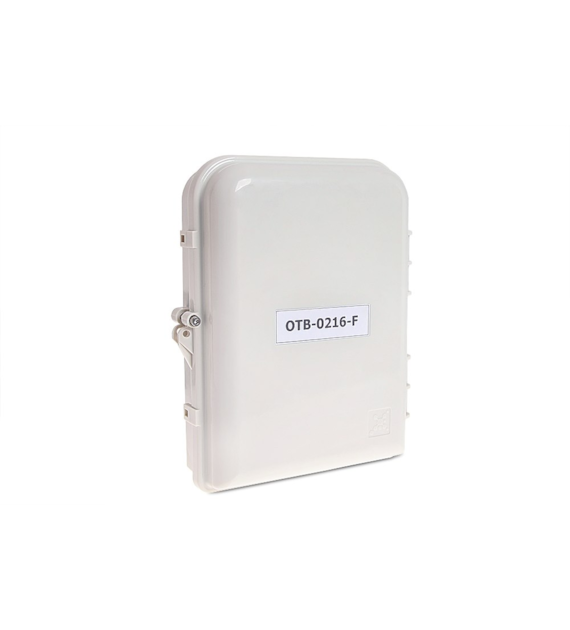

Tracom FTTX MDU Series B fiber optic splice closures are compact box-type enclosures designed to protect splices, organize fibers, and provide connections and branching in FTTx/FTTH fiber-optic networks. Depending on the configuration, they can also function as fiber distribution boxes, allowing adapters to be installed and optical signals to be distributed in an organized manner.
The plastic housing is resistant to UV radiation and chemicals, while the IP65 protection rating safeguards the interior against dust ingress and water jets. The closures are designed to operate at temperatures ranging from -40°C to +60°C. Mechanical port sealing and corrosion-resistant metal components increase the durability of the construction and make it suitable for aerial, duct and underground installations.
The series includes B08 and B16 variants, which differ in dimensions, number of ports, splice capacity and configuration options. Depending on the model, they are available with PG cable glands, oval ports or modular uncut ports, as well as brackets for mounting fiber-optic adapters. V3 versions feature an improved cable fixing holder, making it easier to route and secure the cable correctly inside the closure.
Application: FTTx/FTTH fiber-optic networks
Design: compact box-type splice closure
Functions: splice protection, fiber organization and branching connections
Housing: plastic resistant to UV radiation and chemicals
Protection rating: IP65
Operating temperature range: -40°C to +60°C
Port sealing: mechanical
Metal components: corrosion-resistant
Port types, depending on the variant: PG cable glands, oval ports and modular uncut ports
Possibility of installing fiber-optic adapters
V3 versions: improved cable fixing holder
Mounting: using steel straps or screws
Installation locations: aerial, duct and underground installations
Port type: uncut port
Number of round ports: 16 × Ø11.0 mm
Number of oval ports: 2 × Ø18.3 mm (uncut port)
Maximum splice capacity: 12/24*
Maximum number of adapters: 16 × SC SX / LC DX
|
