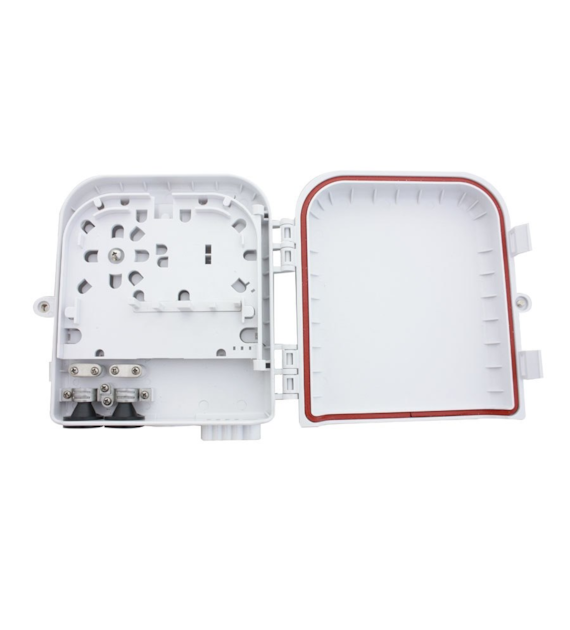

The Tracom FTTX MDU B08 splice and distribution enclosure is a box-type closure equipped with 10 inlet/outlet ports. It is designed to protect fiber optic cable splices and support branching applications. The enclosure is made of high-quality polycarbonate (PC), which provides resistance to UV radiation, a wide temperature range (-40°C to +60°C) and chemicals, making it suitable for aerial, duct and underground installations. It has been designed to ensure quick and trouble-free installation while providing a proven fiber management system. All metal components of the closure are made of corrosion-resistant materials.
Product features:
Enclosure made of high-quality plastic
UV-resistant
Wide operating temperature range (-40°C to +60°C)
Resistant to chemicals
The product includes:
Integrated 16J fiber optic splice tray
Integrated brackets for fiber optic adapters
Sealing tape
Protective tubes for fiber distribution
Single-use plastic cable ties
Key
Screws
Sealing accessories
Specifications:
Application: aerial, duct and underground installation
Sealing: Mechanical
Capacity: 8/16J** splices, 8x SC SX adapters
Ports:
Round: 8x (6.0)
Oval: 1x (52.0x20.0)
|
