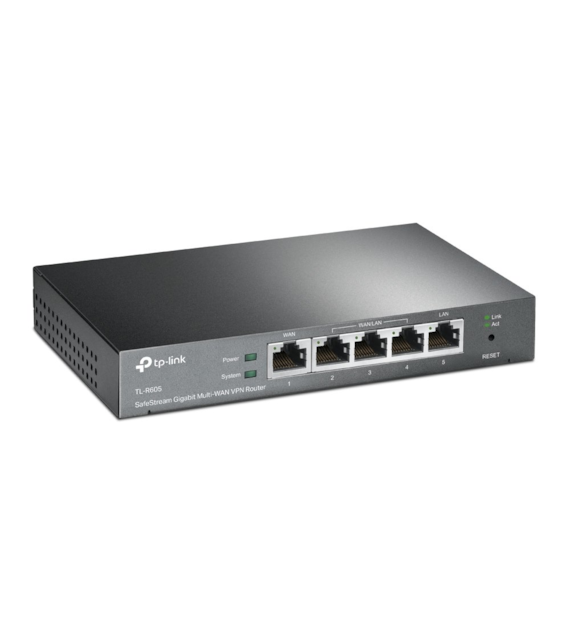

TP-Link ER605 Gb Router Multi-WAN VPN

The TP-Link ER605 (TL-R605) is a gigabit VPN Omada router with Multi-WAN capability and centralized management.

Equipped with 5 Gigabit Ethernet ports, including 2 LAN ports, 1 WAN port, and 2 WAN/LAN ports, the router allows users to utilize up to three WAN ports simultaneously, meeting diverse Internet access requirements. The Multi-WAN Load Balancing feature distributes data transmission among WAN ports, maximizing the utilization of available Internet connections. Additionally, mobile connectivity using a USB 4G/3G modem is supported as a backup connection.

A list of compatible 4G/3G modems is available at https://www.tp-link.com/en/er605/compatibility/.

The TP-Link ER605 is fully integrated with the Omada SDN platform, allowing for centralized and remote control from anywhere at any time. With a configuration page and dedicated application, managing the device is made even more convenient. Easy-to-follow instructions enable quick configuration of necessary settings in the Omada app. Network status monitoring, client management, and settings adjustment can all be done from a smartphone or tablet.

The ER605 supports IPSec/PPTP/L2TP VPN based on IPSec/SSL protocols. One-click Auto IPSec VPN significantly simplifies VPN configuration, facilitating management and deployment of networks. It secures and encrypts private site-to-site communication over the Internet. This version improves VPN performance by 4-5 times with an open line of communication to the Omada user database.

Advanced security features include reliable firewall, convenient VLAN support, DoS attack protection, IP/MAC/URL address filtering, IP-MAC binding, and one-click ALG activation.

The device allows for network usage rules establishment, making it easy to assign Internet access permissions to employees using IP/MAC/URL address filtering and access control list (ACL). Access authentication via a captive portal makes resource consumption control less problematic by logging, authenticating, and classifying users. Specific network resources can also be shared with selected individuals.

Key Features:

• Up to 3 WAN ports with bandwidth load balancing enable simultaneous use of services from multiple Internet service providers.
• Integrated operation with the Omada SDN platform: Zero-Touch Provisioning (ZTP), cloud-based central management, and intelligent monitoring.
• Centralized management: Cloud-based access and the Omada app provide management convenience.
• 5 Gigabit Ethernet ports (2 LAN, 1 WAN, 2 WAN/LAN).
• 1 USB 2.0 port for connecting a 4G/3G modem as a backup link.
• Bandwidth load balancing.
• Highly secure VPN network: Supports up to 20 IPsec LAN-to-LAN connections, 16 OpenVPN connections, 16 L2TP connections, and 16 PPTP VPN connections.
• Reliable security features: Advanced firewall rules, DoS attack protection, IP/MAC/URL address filtering ensure network and data protection.
• VLAN support.
