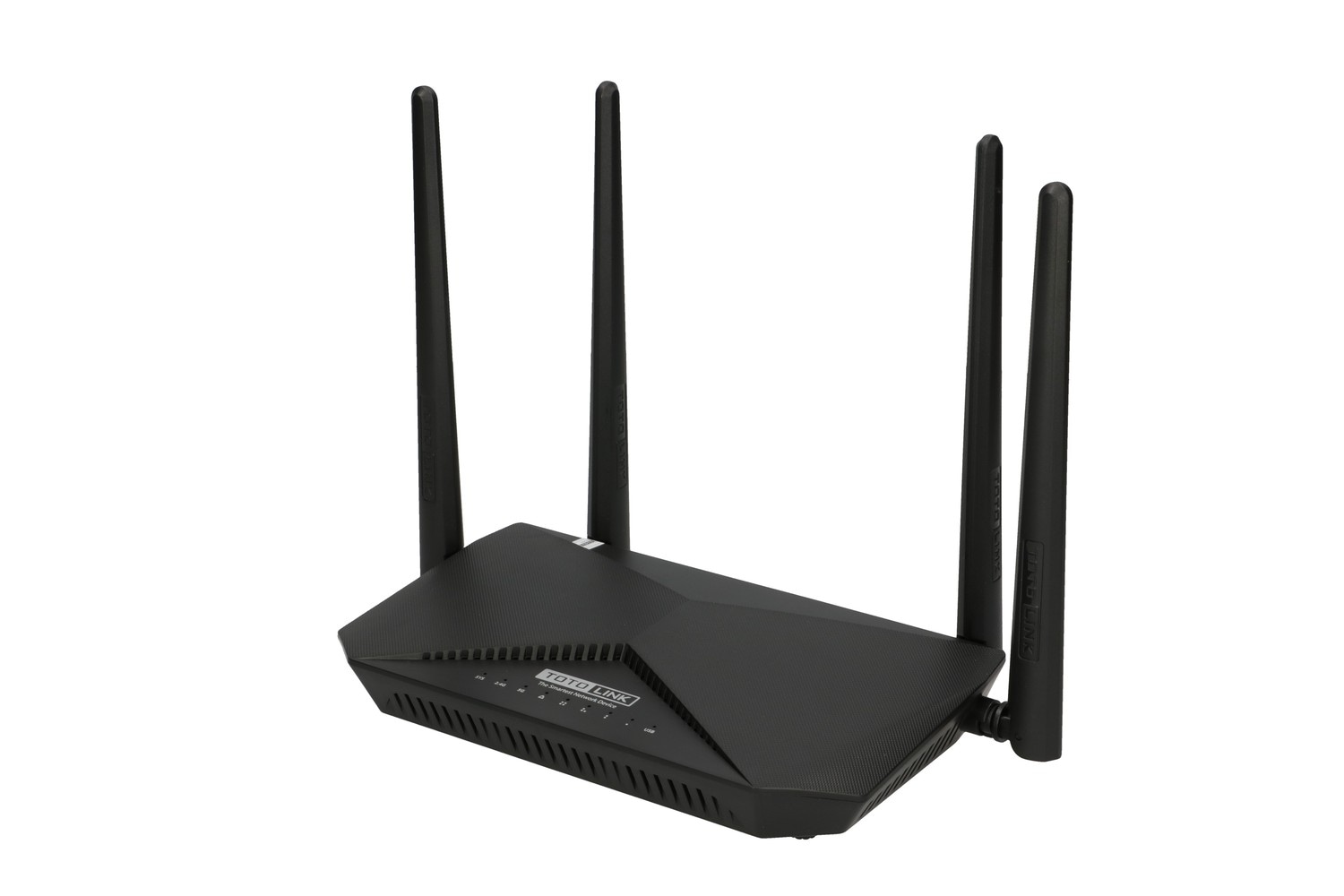

The Totolink A3002RU router is a fifth-generation wireless router, compatible with the latest 802.11ac wireless network standard, capable of operating simultaneously in both the 2.4 GHz and 5 GHz bands, providing data transmission speeds of up to 1167 Mb/s.

It features four Gigabit Ethernet LAN ports, allowing stable wired connections to selected devices. Additionally, it supports VLAN functionality, enabling configuration of internet services such as IPTV.

With its USB port, the Totolink router can serve as an FTP, Samba, or DLNA server when connected to an external network drive. It also allows for charging connected smartphones or tablets.

Advanced WPA/WPA2 encryption methods (TKIP/AES) ensure secure wireless connection to the network, while built-in parental control features allow for setting schedules for Wi-Fi usage.

Specification:

Ports:

• 4 LAN ports at 1000 Mb/s
• 1 WAN port at 1000 Mb/s
• 1 USB 2.0 port

Power Supply: DC 12V/2A

Buttons: 1 reset button, 1 WPS button, 1 power on/off button

LED Indicators: 1 power, 1 processor, 1 2.4G wireless network, 1 5G wireless network, 1 WAN, 4 LAN, 1 USB

Antennas: 2 fixed antennas at 5dBi (2.4 GHz), 2 fixed antennas at 5dBi (5 GHz)

Dimensions (L x W x H): 182.3 x 133.8 x 25.9 mm

Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

RF Frequency: 2.4 GHz / 5 GHz

Data Transmission Speed:

• 2.4 GHz: up to 300 Mb/s
• 5 GHz: up to 867 Mb/s

EIRP: 2.4 GHz < 20dBm, 5 GHz < 20dBm

Wireless Security: 64/128-bit WEP, WPA, WPA2, and WPA/WPA2
