TELEFONIKA Micro Fiber Optic Cable Z-XOTKtmsd 48J (4x12)

Categories: Telefonika k \ Telefonika Cable

Prices

Net retail price
3,06 PLN /szt.

Gross retail price
3,76 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Data
Symbol
TELEFONIKA-Z-XOTKtmsd-48J
Barcode
0000000885
Basic unit
szt.
Manufacturer name
Telefonika
Inventory status

Description

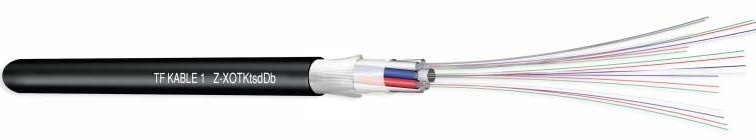

Fiber optic cable by Telefonika:

Z-XOTKtmsd - universal outdoor cable, optotelecommunication, with a loose tube and dry core sealing, completely dielectric.

Product Features:

Sheath: polyethylene
Core sealing: dry
Reinforcement: aramid yarn
Ripping thread for sheath: 1
Cable core: tubes or tubes and fillers twisted around the central strength member
Resistant to electromagnetic interference, can be used near electrical installations
Protected against moisture and longitudinal water penetration
Used in local access networks, FTTH systems, designed for microduct installation for blowing over distances up to 2000m using a blowing machine
Equivalent to VDE standard: A-DQ2Y micro
Specification:

Number of fibers: 48
Fiber type: single-mode G.652D
Single tube diameter: 1.5 mm
Number of active tubes: 4
Number of filling elements: 2
Strength member: central FRP rod
Cable outer diameter: 5.7 mm
Cable mass: 27 kg/km
Outer sheath: black, HDPE, UV resistant
Installation temperature: -10 °C ÷ +50 °C
Operating temperature: -20 °C ÷ +60 °C
Packaging type: cable drum, returnable

Specyfikacja
Warranty:

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
