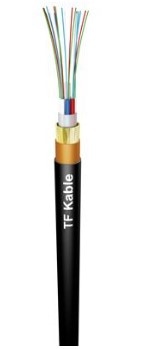

Optotelecommunication cable with tubular reinforcement, rodent-resistant, external-internal universal
Symbol: ZW-(NV)OTKtsdD 6J (1x6)/1.8
Application: Universal
Outer sheath: Flame-retardant halogen-free polymer (FRLSOH)
Inner sheath: Polyamide
Cable core type: Tubular with non-gel sealing
Dielectric cable
Tube diameter: 1.8mm
Reinforcement type: Dielectric circumferential reinforcement with aramid yarn
Cable cross-section: Circular
Type of optical fibers used: Single-mode with unmatched cladding dispersion (G652D)
Total number of fibers: 6
Fiber arrangement in tubes: (1x6)
Technical description:
Optotelecommunication tubular cable with reinforcement, rodent-resistant, external-internal universal
ZW-(NV)OTKtsd - universal cable for external and internal applications (ZW), with a two-layer halogen-free polymer-polyamide sheath (NV), optotelecommunication (OTK), tubular (loose tube) with dry core sealing (ts), fully dielectric (d), with aramid reinforcement (D) or with glass fiber reinforcement (Db).
Central strength element – Dielectric FRP rod
Tube – loose tube with optical fibers filled with thixotropic gel
Insert – polyethylene
Reinforcement - aramid yarn
Ripcord for sheath breakage - 2
Cable core – tubes or tubes and inserts twisted around the central strength element
CPR – Eca
The use of polyamide in the two-layer sheath provides protection against rodent attacks
Resistant to electromagnetic interference, can be used near electrical installations
Cable sheath made of flame-retardant materials
The cable is protected against moisture ingress and longitudinal water penetration
Thanks to the use of a dielectric central strength element and reinforcement with aramid fibers, the cable is resistant to longitudinal and transverse stresses
Equivalent to VDE standard: A/I-DQ(ZN)4YH U-DQ(ZN)4YH
The cable is suitable for use in long-distance, extensive, and local telecommunication networks. It is intended for installation in railway and road tunnels, mining shafts, on external building walls, in enclosed spaces, and for horizontal and vertical suspension.
For our customers, we customize cable lengths according to specific orders. Final product prices can be negotiated based on specific orders. We approach each customer individually and guarantee professional service.
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
