TELEFONIKA Kabel światłowodowy ZW-NOTKtsd 288J 12x24, tuba 1,8mm

ZW-NOTKtsd Fiber Optic Cable – Flame Retardant, Halogen-Free, Universal

The ZW-NOTKtsd fiber optic cable is a modern, safe, and reliable solution designed for applications both inside buildings and in cable ducts or telecommunication pipelines. Developed to meet strict fire safety requirements, it is ideal for use in residential, industrial, and public utility facilities – such as schools, office buildings, shopping centers, railway stations, airports, and hotels.

Key features:

• Flame retardant and halogen-free – the outer sheath is made of a flame-retardant material free from halogens (chlorine, bromine, fluorine, and iodine), which reduces the emission of toxic gases and smoke during a fire.
• Universal application – suitable for installation in cable ducts, pipelines, and inside buildings.
• Fully dielectric design – the absence of metal components allows the cable to be installed near medium- and high-voltage power lines.
• Moisture resistance – tubes filled with hydrophobic gel and the use of dry water-blocking tapes protect the optical fibers against water ingress.
• Metric marking and customizable identification – facilitates cable identification and installation.
• Wide operating and installation temperature range – from -40°C to +70°C (operation), ensuring reliable performance in various environmental conditions.

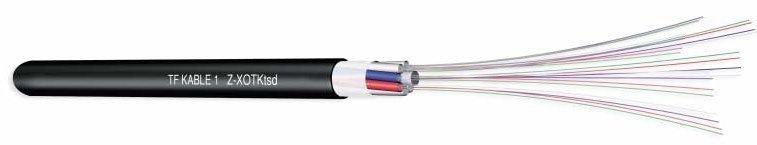

ZW-NOTKtsd Cable Construction a: Central strength member – dielectric FRP rod, with or without a polyethylene coating. b: Loose tube – a tube containing optical fibres and filled with hydrophobic gel c: Optical fibre – single-mode fibre (J), dispersion-shifted single-mode fibre (Jn), multimode fibre (G/50), or multimode fibre (G/62.5). d: Filler element – polyethylene filler rod. e: Cable core – all tubes and filler elements stranded around the central strength member. f: Core sealing – dry water-blocking system. g: Ripcord – two threads for cutting and removing the cable sheath. h: Outer sheath – made of flame-retardant, halogen-free material.

Applications

The Tele-Fonika ZW-NOTKtsd cable is an ideal solution for installation in:

• public utility buildings,
• railway and road tunnels,
• industrial facilities,
• telecommunications and ICT infrastructure,
• fibre optic networks operating under demanding environmental conditions.

Performance Parameters

• Resistance to electromagnetic interference
• Protection against longitudinal water penetration
• Flame-retardant and halogen-free sheath
• High flexibility and durability
• Transport and storage temperature: -40°C to +70°C
• Installation temperature: -15°C to +60°C
• Operating temperature: -40°C to +70°C

The ZW-NOTKtsd fiber optic cable combines safety, durability and functionality. It is designed for installations where reliability and the protection of people and infrastructure are of the highest priority.
