TELEFONIKA Kabel światłowodowy ZW-NOTKtsd 24J (2x12), tuba 1,8mm, średnica 8mm

ZW-NOTKtsd Fibre Optic Cable – Flame-Retardant, Halogen-Free and Universal

The ZW-NOTKtsd fibre optic cable is a modern, safe and reliable solution designed for installation both inside buildings and in cable ducts or telecommunications pipelines. Developed to meet stringent fire safety standards, it is ideally suited for residential, industrial and public-use facilities, such as schools, office buildings, shopping centres, railway stations, airports and hotels.

Key Features

• Flame-retardant and halogen-free – the sheath is made of flame-retardant, halogen-free material containing no chlorine, bromine, fluorine or iodine, which limits the emission of toxic gases and smoke during a fire.
• Universal application – suitable for installation in cable ducts, pipelines and inside buildings.
• Fully dielectric construction – the absence of metallic elements allows the cable to be installed near medium- and high-voltage power lines.
• Moisture resistance – the tubes are filled with hydrophobic gel, while dry water-blocking tapes protect the fibres against water ingress.
• Metric length marking and customisable identification – facilitates cable identification and installation.
• Wide operating and installation temperature range – operating temperatures from -40°C to +70°C ensure reliable performance in various environmental conditions.

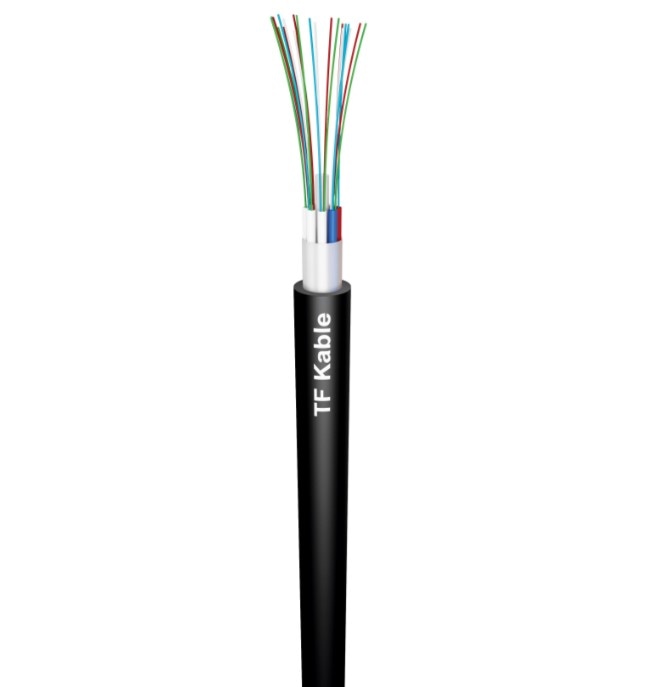

ZW-NOTKtsd Cable Construction a: Central strength member – dielectric FRP rod, with or without a polyethylene coating b: Loose tube – tube containing optical fibres and filled with hydrophobic gel c: Optical fibre – single-mode (J), dispersion-shifted single-mode (Jn), multimode (G/50) or multimode (G/62.5) d: Filler element – polyethylene filler e: Cable core – all tubes and filler elements stranded around the central strength member f: Cable core sealing – dry water-blocking system g: Ripcord – two threads for cutting and removing the cable sheath h: Sheath – flame-retardant, halogen-free material

Applications

The Tele-Fonika ZW-NOTKtsd cable is an ideal solution for installation in:

• public-use buildings,
• railway and road tunnels,
• industrial facilities,telecommunications and low-current infrastructure,
• fibre optic networks operating in demanding environmental conditions.

Performance Characteristics

• Resistance to electromagnetic interference
• Protection against longitudinal water penetration
• Flame-retardant and halogen-free sheath
• High flexibility and durability
• Transport and storage temperature: -40°C to +70°C
• Installation temperature: -15°C to +60°C
• Operating temperature: -40°C to +70°C

The ZW-NOTKtsd fibre optic cable combines safety, durability and functionality. It has been designed for installations where reliability and the protection of people and infrastructure are of the highest priority.
