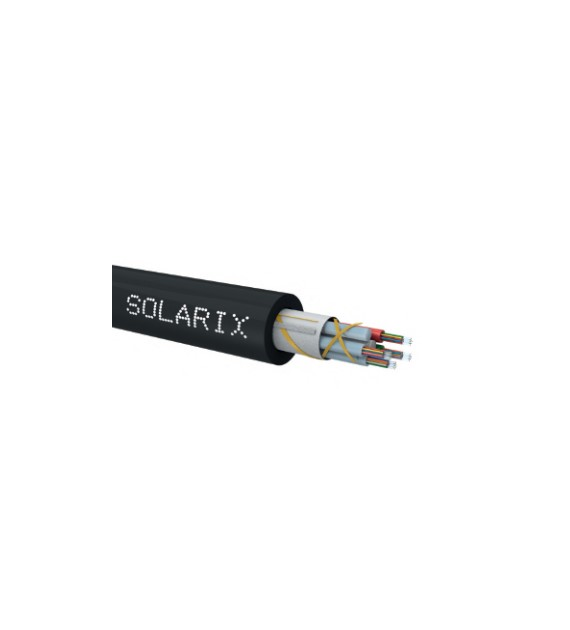

The external optical fiber cable Solarix SXKO-ADSS-4KN-12-OS-PE-P, with a fire reaction class of Fca, features a UV-resistant PE coating, making it ideal for outdoor installation. The cable is self-supporting with a strength of 4000N, allowing it to be suspended without the need for additional supporting lines. Optical fibers are housed in gel-filled tubes, providing protection against water ingress. Each tube can accommodate up to 6 fibers. The cable is free from metallic elements and fully dielectric, utilizing G.652.D fibers for production.
Specification:
Cable type: external
Fiber type: 9/125 µm
Fire reaction, coating: Fca PE
Type based on the number of tubes: MLT
Installation temperature: from -40°C to 60°C
Storage temperature: from -40°C to 70°C
Fiber specification: G652.D
Short-term tensile strength: 4000N
Minimum bending radius (short-term): 10D
Minimum bending radius (long-term): 20D
|
