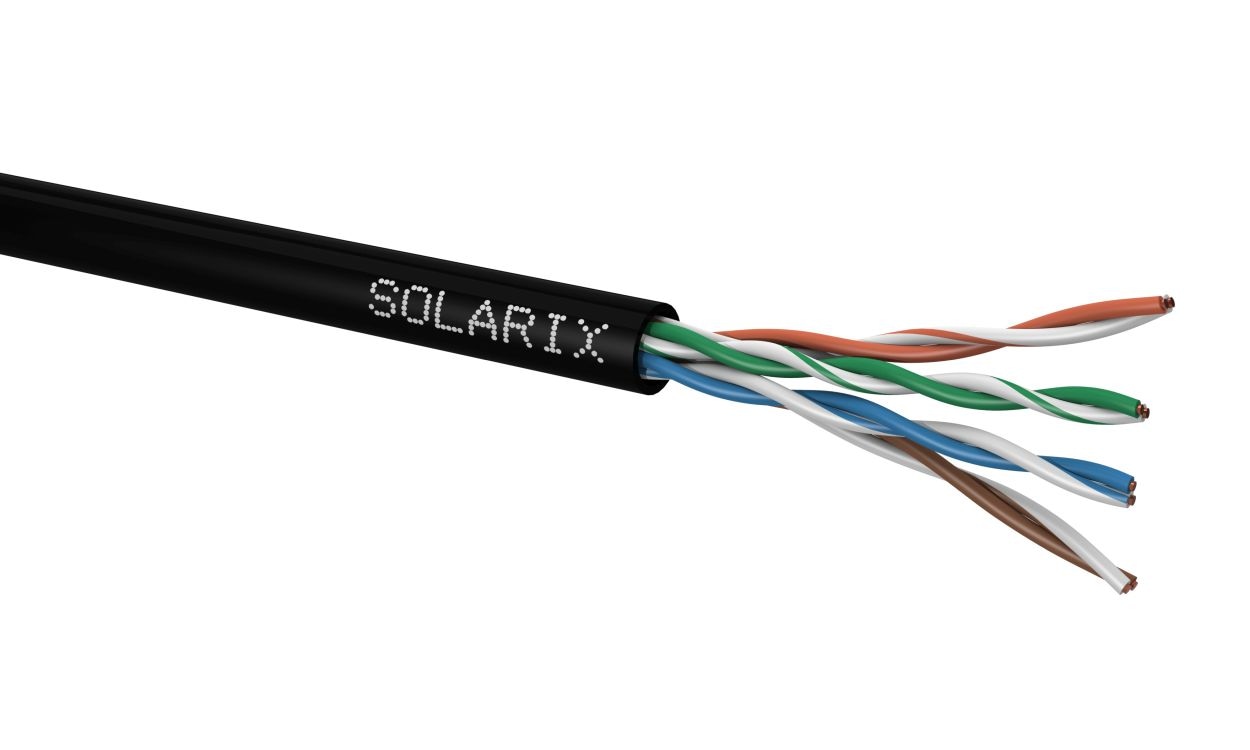

SOLARIX kabel instalacyjny zewnętrzny UTP CAT5E 305 metrów SXKD-5E-UTP-PE

The installation cable labeled SXKD-5E-UTP-PE is a CAT5E cable with a PE sheath. It is designed for outdoor use, where cables with PVC or LSOH sheaths do not provide adequate protection against weather conditions. Collaborating with other components of the Solarix structural cabling system, it ensures long-term use, maximum performance, and seamless network traffic.

Solarix installation cables in category 5E are intended for horizontal connections and are available in shielded and unshielded versions, with various types of sheathing - such as PVC (fire reaction class Eca), LSOH (fire reaction class Dca s1 d2 a1), or UV-stable PE (fire reaction class Fca). These cables effortlessly meet the requirements defined in international standards ANSI/TIA 568, ISO/IEC 11801, and EN 50173 for category 5E and Class D cables, including all the latest amendments.

Similar to other Solarix cables, the SXKD-5E-UTP-PE cable has markings on the PE sheath every meter in the range from 0 to 305 meters. This cable is delivered in a reinforced triple-layer cardboard box (color-coded according to the cable type), which contains all the necessary product information, including barcodes, production batch numbers, description, and main technical parameters.

Key features of Solarix category 5E cable:

• Inner conductor diameter: ø 0.50 ± 0.005 mm, 99.97% CU, Wire - 24 AWG
• Type: U/UTP, category 5E
• Outer sheath: PE, black color
• Cable diameter: ø 5.0 mm
• Insulation of conductors: PE
• Fire class: Fca
• UV radiation resistance
• Bandwidth: 100 MHz
• Application: outdoor
• Compliance with standards: ISO/IEC 11801, EN 50173, ANSI/TIA 568
• Weight: 30 kg/km
• Warranty: 5 years
