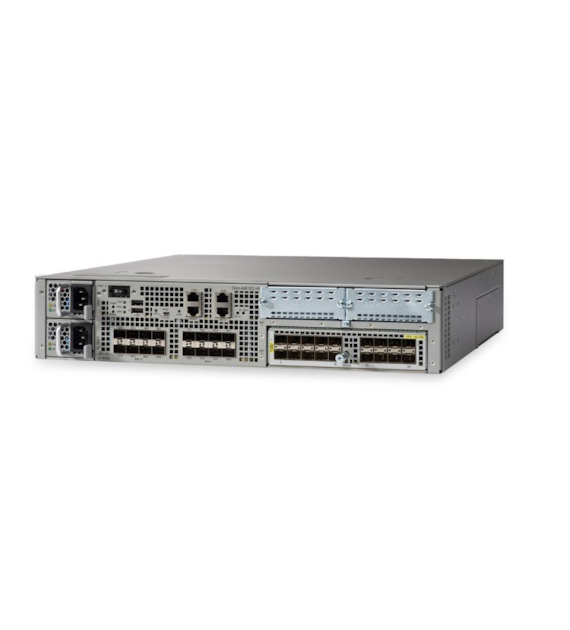

Router Cisco ASR 1002-hX 4x 10GE SFP+, 4x 1GE SFP. 16GB RAM

Cisco ASR1002-HX

Introduction to the Cisco ASR1002-HX Router

The Cisco ASR1002-HX is an advanced enterprise-class router designed for the most demanding network environments. From the very first minutes of working with this device, it is clear that the Cisco ASR1002-HX focuses on performance, reliability, and security. Moreover, this router fits perfectly into the needs of modern enterprises that must handle massive amounts of data without compromising stability.

With throughput of up to 100 Gb/s, the Cisco ASR1002-HX enables efficient traffic handling in data centers, service provider networks, and large corporate infrastructures. Importantly, the device runs on Cisco IOS XE, which ensures configuration flexibility and seamless integration with existing IT infrastructure.

Use of Cisco ASR1002-HX in Enterprise Networks

The Cisco ASR1002-HX router is used wherever high service availability and scalability are critical. Companies deploy it as a central routing point in WAN, MAN, and data center interconnection networks. This allows for efficient traffic management and ensures continuity of key business systems.

In practice, the Cisco ASR1002-HX performs exceptionally well in sectors such as finance, telecommunications, public administration, and e-commerce. Wherever even a brief network outage can cause real losses, this router demonstrates its true value.

Architecture and Performance of the Cisco ASR1002-HX

The architecture of the Cisco ASR1002-HX is designed as an integrated system. All key components—such as the routing processor, ESP, and network interfaces—are built into a single chassis.

100 Gb/s Throughput

One of the most important advantages of the Cisco ASR1002-HX is its 100 Gb/s throughput. This means the router can handle enormous volumes of data without becoming a bottleneck. In real-world scenarios, this translates into smooth data transmission even under heavy network load.

Integrated Routing Processor

The integrated Cisco ASR1002-HX Series Route Processor ensures fast packet processing and low latency. As a result, end users do not experience performance degradation, even during intensive network usage.

Ports and Network Interfaces

The Cisco ASR1002-HX is equipped with a wide range of ports, making it a highly flexible solution.

SFP and SFP+ Ports

The router offers:

• 8 × Gigabit Ethernet SFP ports

• 8 × 10 Gigabit Ethernet SFP+ ports

It is worth noting that the SFP+ ports operate at a fixed speed of 10 GbE, ensuring network stability and predictable performance.

Security and Data Encryption

Data security is a fundamental requirement today. The Cisco ASR1002-HX provides hardware-based data encryption with throughput of up to 25 Gb/s. This enables secure data transmission in VPN networks without noticeable performance loss.

The router supports advanced security mechanisms such as access control, network segmentation, and advanced security policies. As a result, the Cisco ASR1002-HX is frequently chosen by organizations that must comply with strict security standards.

Scalability and Reliability

The Cisco ASR1002-HX is designed for long-term IT infrastructure growth. Although the device does not support expandable line cards, its high performance allows it to remain a relevant solution for many years.

Thanks to software redundancy and robust hardware design, the router ensures continuous operation even in challenging conditions.

Redundancy and Power Supply

The router supports redundant 2× AC power supplies, significantly increasing system reliability. The package includes a Cisco ASR1002-PWR-AC (ref) power supply, and the maximum power consumption is 500 W.

Cisco IOS XE Operating System

The minimum supported software version is Cisco IOS XE 16.2.1S. This operating system provides modern features for automation, monitoring, and network management. Importantly, Cisco IOS XE is regularly updated, enhancing both security and functionality.

More information about the operating system can be found on Cisco’s official website.

Installation, Dimensions, and Operating Conditions

The Cisco ASR1002-HX is designed for installation in 19-inch rack cabinets. Its dimensions are 439.4 × 88.9 × 489.0 mm, which corresponds to the 1U standard.

The device operates at temperatures from 0°C to 40°C under nominal conditions, and can tolerate short-term operation up to 50°C, making it suitable for demanding environmental conditions.

Comparison with Other Cisco ASR Routers

Compared to other models in the ASR 1000 Series, the Cisco ASR1002-HX stands out for its excellent performance-to-size ratio. When compared to larger models, it offers similar throughput while requiring significantly less rack space.

Advantages of the Cisco ASR1002-HX

• High throughput of 100 Gb/s

• Hardware-based data encryption

• Integrated architecture

• Redundant power supplies

• Stable and mature Cisco IOS XE operating system

Disadvantages and Limitations

• No support for line card expansion

• High power consumption under maximum load

Most Common Business Use Cases

The Cisco ASR1002-HX is an ideal solution for:

• Large enterprises

• Telecommunications operators

• Data centers

• Public sector institutions
