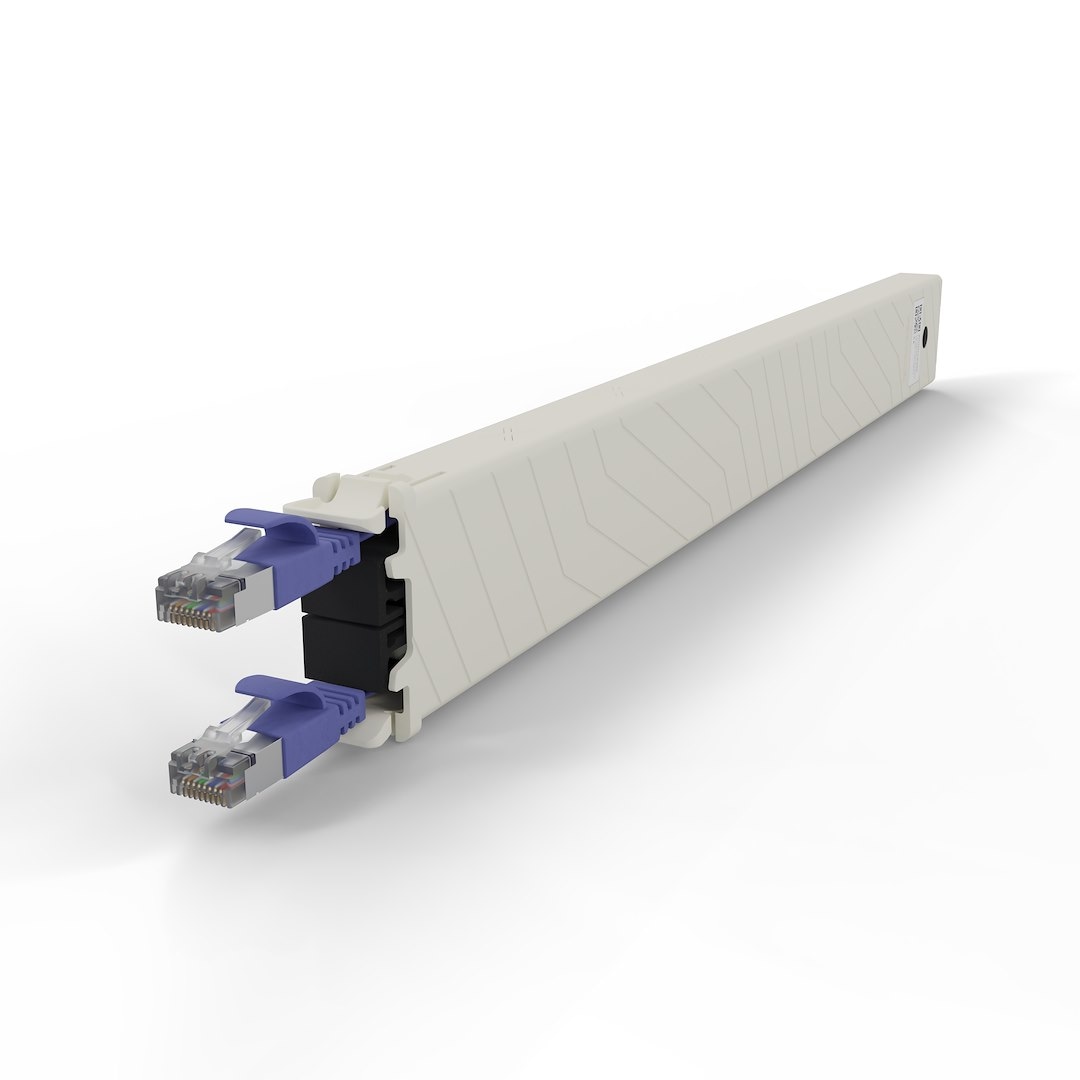

PATCHBOX® ONE kaseta Cat.6a (UTP, Fioletowy, 1.8m / 30RU)

PATCHBOX.ONE – Cassette 30RU / Cat.6a

The patchbox.one Cat.6a cassette is a modular component of a cable management system for rack cabinets, designed for clarity, ergonomics, and the highest connection quality. The flat Cat.6a cable with a length of 1.8 m ensures reliable data transmission and comfortable cable routing across a space of up to 30RU.

Customization according to your needs

Build your own patchbox.one by choosing different cable types and colors!
The patchbox.one / Frame accommodates 24 cassettes, allowing you to create any installation configurations.

The Cat.6a version allows you to choose:
• UTP or STP shielding
• One of eight available cable colors, making it easier to organize and identify connections

Technical specification UTP Cable • Flat Cat.6a U/FTP • ISO/IEC 11801 Channel Class Ea • ANSI/EIA/TIA-568 Cat.6A Channel • Frequency: 500 MHz • AWG36 • 100% stranded copper • Jacket: PVC • PoE (802.3af) • Compliance: RoHS

Cat.6a connectors

• Shielded RJ45 plug
• Gold-plated contacts
• “Snagless” design protecting the latch

Cable length

• 1.8 m / 6 ft
• Coverage: up to 30RU

Materials

• Cassette profiles: ABS and RAL9001
• Plastic components: POM (Polyoxymethylene)

Operating conditions

• Humidity (non-condensing): 10% – 90%

Weight and packaging

• Gross weight: 0.28 kg / 0.61 lbs

Packaging dimensions:
• 668 mm × 50 mm × 28 mm
• 26.29 in × 1.96 in × 1.10 in

Package contents

• 1 × patchbox.one cassette / 30RU / Cat.6a UTP

Additional information

• Product manufactured in the EU
• 10-year warranty
