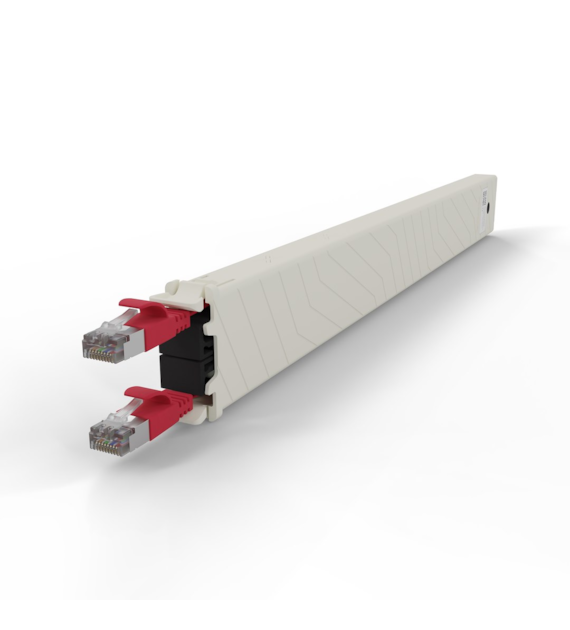

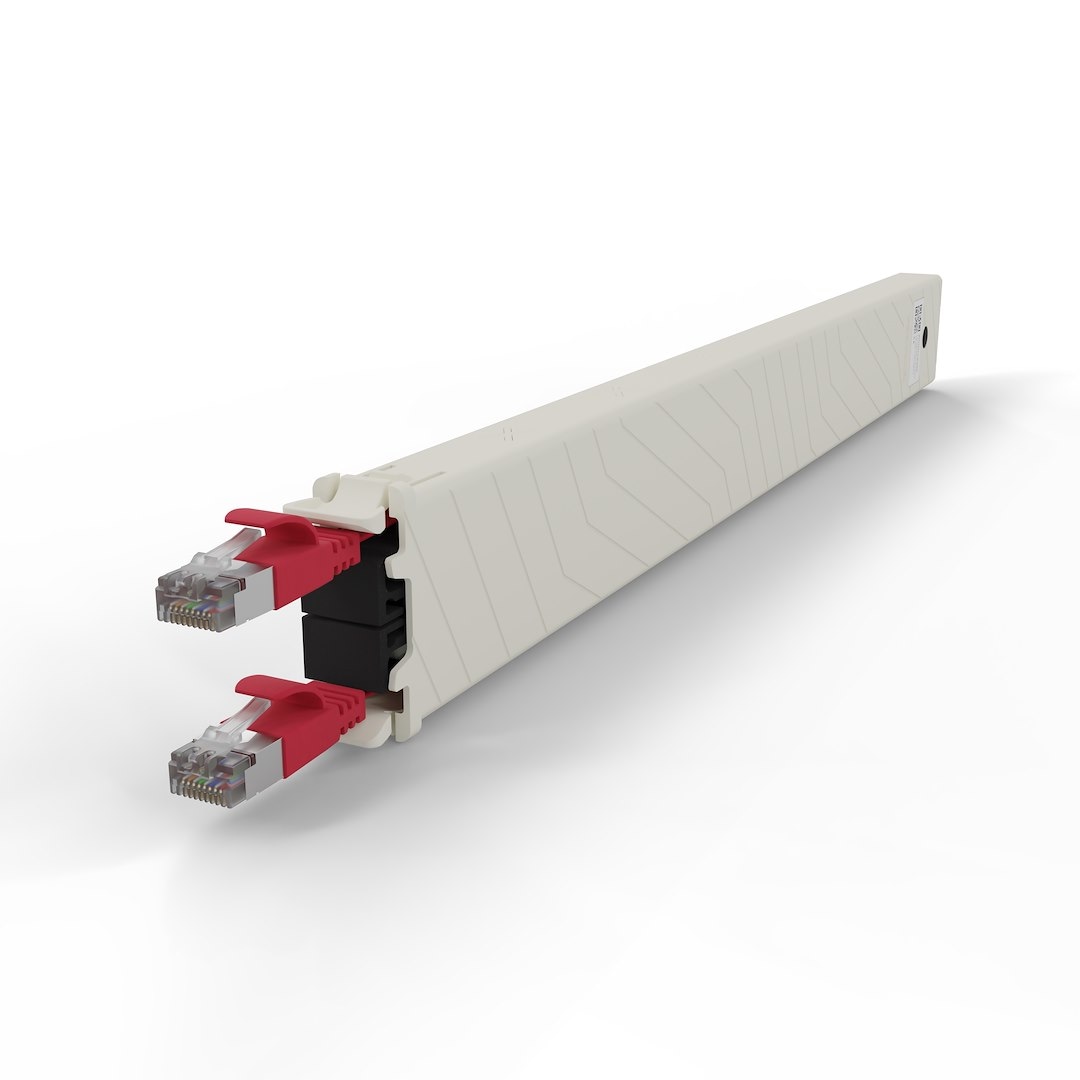

PATCHBOX® ONE kaseta Cat.6a (UTP, Czerwony, 2.5m / 46RU)

PATCHBOX.ONE – 46RU / Cat.6a Cassette

The PATCHBOX.ONE Cat.6a cassette is a modular component of a cable management system designed for rack cabinets, created with a focus on clarity, ergonomics, and premium connection quality. The 2.5 m flat Cat.6a cable ensures reliable data transmission and convenient cable routing across up to 46RU.

Customization to Fit Your Needs

Build your own PATCHBOX.ONE by selecting different cable types and colors.
The PATCHBOX.ONE frame accommodates up to 24 cassettes, allowing flexible and fully customizable installation configurations.

The Cat.6a version offers:
• UTP or STP shielding options
• A choice of eight cable colors for easier organization and connection identification

Technical Specifications UTP Cable • Flat Cat.6a U/FTP • ISO/IEC 11801 Channel Class Ea • ANSI/EIA/TIA-568 Cat.6A Channel • Frequency: 500 MHz • AWG36 • 100% stranded copper • Jacket material: PVC • PoE support (802.3af) • RoHS compliant

Cat.6a Connectors

• Shielded RJ45 plug
• Gold-plated contacts
• “Snagless” design protecting the locking tab

Cable Length

• 2.5 m
• Coverage: up to 46RU

Materials

• Cassette profiles: ABS and RAL9001
• Plastic components: POM (Polyoxymethylene)

Operating Conditions

• Humidity (non-condensing): 10% – 90%

Weight and Packaging

• Gross weight: 0.28 kg / 0.61 lbs

Packaging dimensions:
• 668 mm × 50 mm × 28 mm
• 26.29 in × 1.96 in × 1.10 in

Package Contents

• 1 × PATCHBOX.ONE / 46RU / Cat.6a UTP cassette

Additional Information

• Made in the EU
• 10-year warranty
