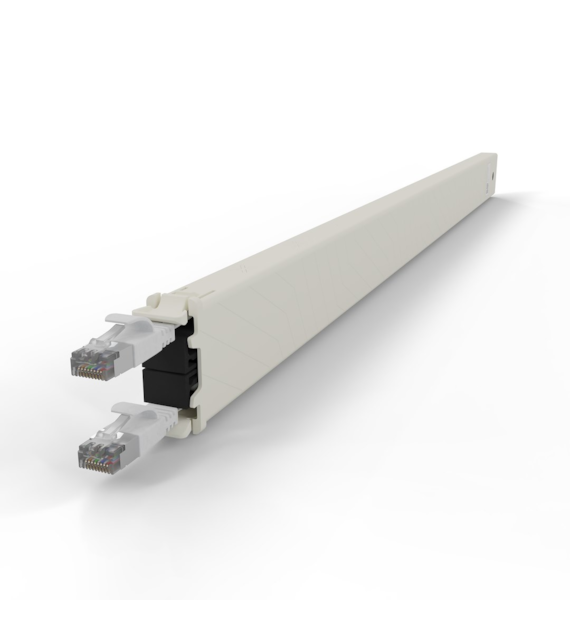

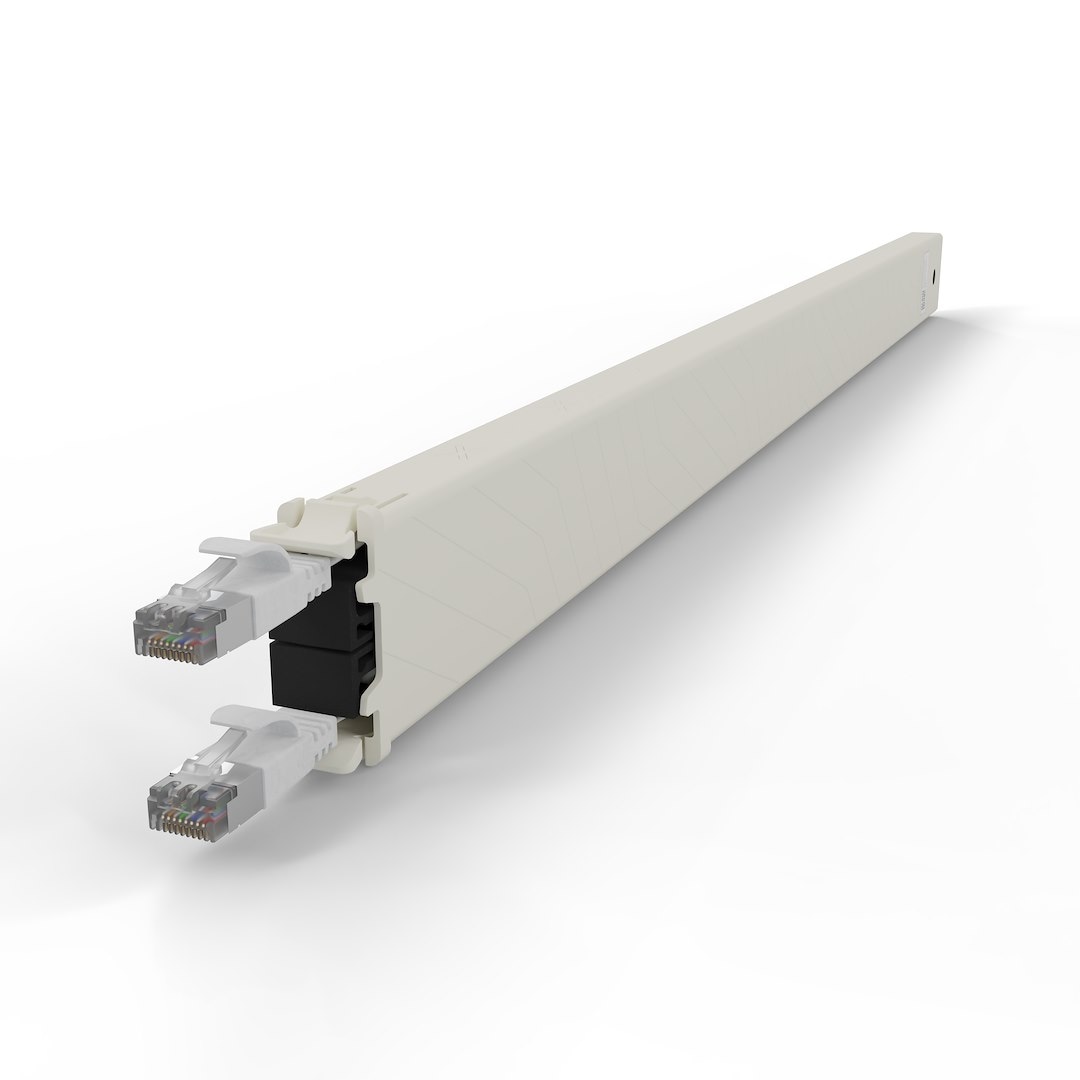

PATCHBOX® ONE kaseta Cat.6a (UTP,Biały, 2.5m / 46RU)

PATCHBOX.ONE – 46RU / Cat.6a Cassette

The PATCHBOX.ONE Cat.6a cassette is a modular component of the cable management system for rack cabinets, designed to ensure maximum clarity, ergonomics, and high-performance connectivity. The 2.5 m flat Cat.6a cable provides reliable data transmission and convenient cable routing across installations up to 46RU.

Customization Tailored to Your Needs

Build your own PATCHBOX.ONE configuration by choosing different cable types and colors.
The PATCHBOX.ONE Frame accommodates up to 24 cassettes, allowing flexible and fully customizable installation layouts.

The Cat.6a version offers:
• UTP or STP shielding options
• A choice of eight cable colors for easier organization and identification of connections

Technical Specifications UTP Cable  • UTP Cable • ISO/IEC 11801 Channel Class Ea compliant • ANSI/EIA/TIA-568 Cat.6A Channel • Frequency: 500 MHz • AWG36 • 100% stranded copper conductors • PVC jacket • PoE support (802.3af) • RoHS compliant

Cat.6a Connectors

• Shielded RJ45 plug
• Gold-plated contacts
• Snagless design protecting the locking tab

Cable Length

• 2.5 m
• Coverage: up to 46RU

Materials

• Cassette profiles: ABS and RAL9001
• Plastic components: POM (Polyoxymethylene)

Operating Conditions

• Humidity (non-condensing): 10% – 90%

Weight and Packaging

• Gross weight: 0.28 kg / 0.61 lbs

Packaging dimensions:
• 668 mm × 50 mm × 28 mm
• 26.29 in × 1.96 in × 1.10 in

Package Contents

• 1 × PATCHBOX.ONE / 46RU / Cat.6a UTP cassette

Additional Information

• Made in the EU
• 10-year warranty
