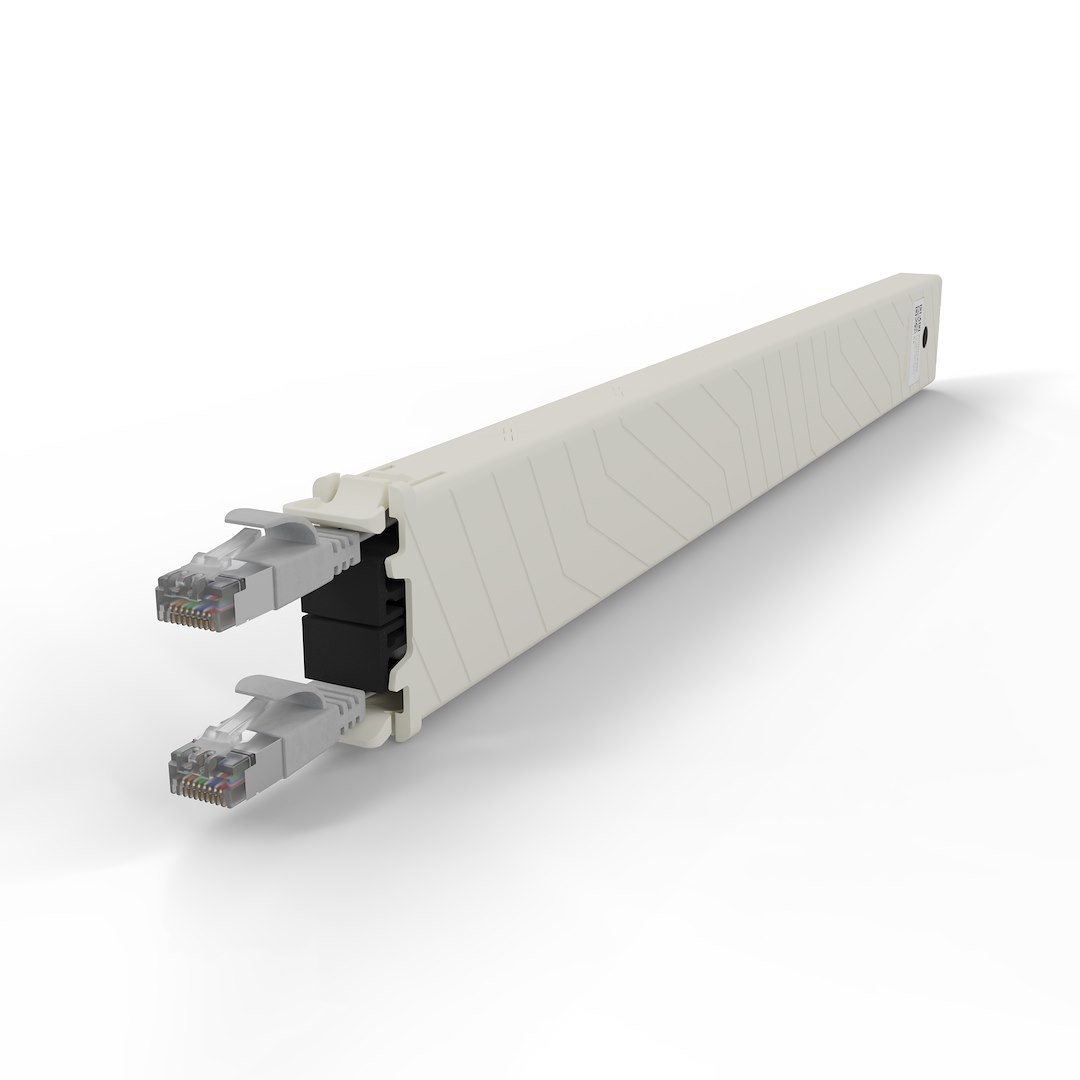

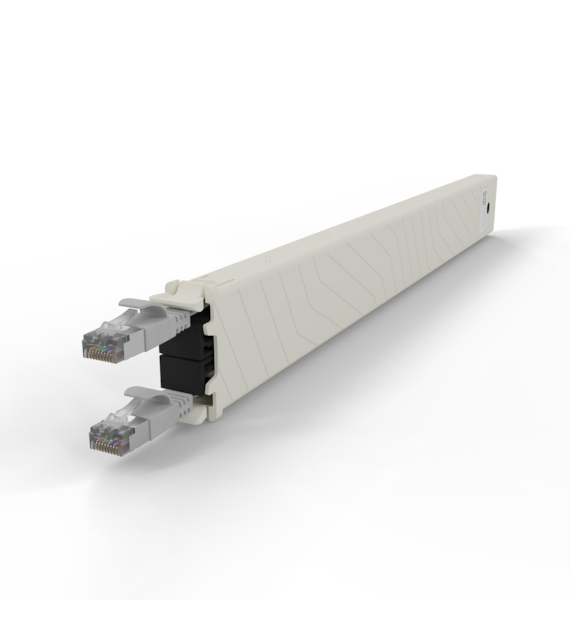

The patchbox.one Cat.6a cassette is a modular component of the patchbox.one cable management system for rack cabinets, designed for clarity, ergonomics, and the highest connection quality.
The 1.8 m flat Cat.6a cable ensures reliable data transmission and comfortable cable routing across installations of up to 30RU.
Build your own patchbox.one by choosing different cable types and colors.
The patchbox.one Frame accommodates 24 cassettes, allowing for flexible and fully customized installation layouts.
The Cat.6a version offers:
• UTP or STP shielding
• One of eight available cable colors for easy organization and connection identification
Technical SpecificationsSTP Cable (Shielded)• Flat Cat.6a U/FTP |  |
• Shielded RJ45 plug
• Gold-plated contacts
• Snagless design to protect the locking tab
• 1.8 m / 6 ft
• Coverage: up to 30RU
• Cassette profiles: ABS, RAL9001
• Plastic components: POM (Polyoxymethylene)
• Humidity (non-condensing): 10% – 90%
• Gross weight: 0.28 kg / 0.61 lbs
Package dimensions:
• 668 mm × 50 mm × 28 mm
• 26.29 in × 1.96 in × 1.10 in
• 1 × patchbox.one cassette / 30RU / Cat.6a
• Manufactured in the EU
• 10-year warranty
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
