OPTIX Kabel światłowodowy wzmacniany włóknem szklanym Z-XOTKtsdDb 4J jednotubowy, 1,0kN, średnica 5,5mm

Prices

Net retail price
1,03 PLN /szt.

Gross retail price
1,27 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Zapłać 30 dni później z   Dowiedz się więcej
Data
Symbol
OPTIX-GLASS-Z-XOTKtcdDb-4J
Barcode
0000008852
Basic unit
szt.
Manufacturer name
Optix
Inventory status

Description

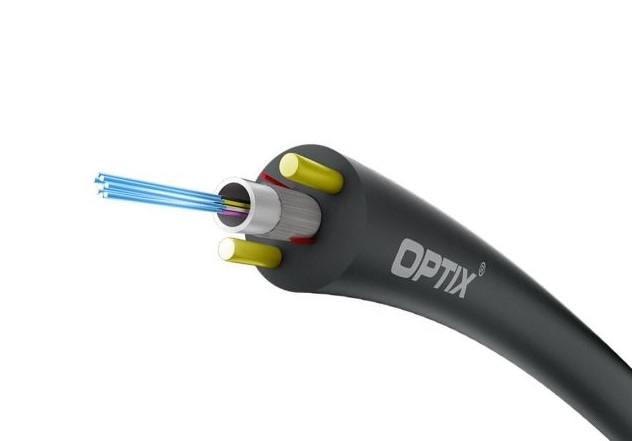

OPTIX GLASS Z-XOTKtcdDb Fiber Optic Cable

The OPTIX GLASS Z-XOTKtcdDb fiber optic cable is a high-quality, single-tube construction designed for modern telecommunication installations. It features a lightweight design (25–30 kg/km) and a small outer diameter—only 5.5 mm for the 12-fiber version and 6.0 mm for the 24-fiber version—ensuring high flexibility and ease of installation even in challenging environments.

Product Features:

  • Up to 24 optical fibers housed in a single gel-filled tube for protection against moisture and vibrations

  • Color-coded fibers compliant with TIA/EIA-598 standard

  • Reinforced construction with glass yarns and two strength members (ARP rods Ø0.5 mm or FRP rods Ø0.4 mm) for enhanced mechanical durability

  • UV-resistant HDPE outer sheath

  • Water-blocking design (WB) to prevent moisture ingress

  • Operating temperature range: -20°C to +70°C

  • Fully dielectric structure – no metal components

  • Two ripcords for easy sheath removal

  • Maximum installation tension: up to 1000 N

  • Suitable for primary and secondary telecommunication ducts using:

    • Pneumatic installation (blowing)

    • Mechanical installation (pulling)

    • Can also be used for aerial installations (up to 40 m span)

Applications:
Ideal for use in FTTH, FTTx, backbone, and distribution networks. Designed for telecom operators and installers who require a durable, environmentally resistant solution.



Specyfikacja
Condition:
Odporność na zgniatanie:
Outer coating:
Product group:
Średni czas dostawy:
Tensile strength:
Waga kabla:

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
