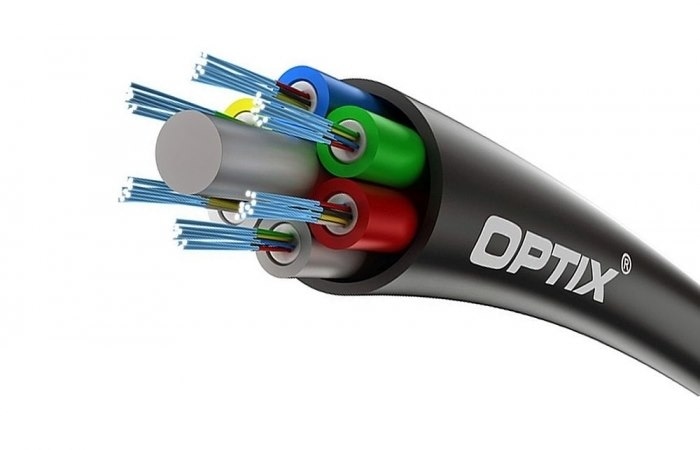

OPTIX Kabel światłowodowy Saver ZW-NOTKtsdDb 24J (2x12) 1,8kN średnica 8,3mm

Net retail price
2,28 PLN /szt.

Gross retail price
2,80 PLN /szt.
*Powyższa cena dotyczy osób nieposiadających konta
This language version of the website is still under construction. If you want to know more, please contact us.
Vat 23%
Zapłać 60 dni później z PRAGMA GO
Data
Symbol
OPTIX-SAVER-ZW-NOTKtsdDb-24J

Barcode
0000009092

Manufacturer name
Optix

Inventory status



Description

OPTIX Saver ZW-NOTKtsdDb 24F (2x12) Fiber Optic Cable, 1.8 kN, 8.3 mm Diameter – Reliable 24F Solution

The OPTIX Saver ZW-NOTKtsdDb 24F (2x12) fiber optic cable, with a tensile strength of 1.8 kN and an 8.3 mm diameter, is a durable duct cable with high mechanical and environmental resistance, ideal for FTTH and FTTx networks.

Why choose the Saver 24F fiber optic cable?

The OPTIX Saver ZW-NOTKtsdDb 24F (2x12) fiber optic cable, 1.8 kN, 8.3 mm diameter is designed for demanding duct installations. It combines a compact design with high mechanical resistance. What does this mean in practice? Fewer installation problems and greater durability over the years.

The manufacturer is OPTIX, a brand recognized in the telecommunications industry and valued for quality and compliance with European standards.

Key advantages:

  • Fully dielectric construction

  • Additional water-blocking protection

  • Resistance to high and low temperatures

  • Glass fiber reinforcement

  • Durable HDPE sheath

  • Practical, thin ripcord

This is a cable that gets the job done – without compromise.

Product technical specifications

Central tube design

The cable features a central strength member made of FRP (fiberglass), which stabilizes the structure and increases tensile strength. The fibers are placed inside a loose tube filled with hydrophobic gel, effectively protecting them against moisture.

The cable construction includes:

  1. Central FRP rod

  2. Optical fibers with a 0.25 mm colored coating

  3. Hydrophobic gel

  4. Loose tube

  5. Ripcord for sheath removal

  6. Filler

  7. Water-blocking tape/fibers

  8. Reinforcing glass fibers

  9. Black, UV-resistant HDPE sheath

24F (2x12) optical fibers

The 24F (2x12) configuration consists of two bundles of 12 fibers each. It is an optimal choice for medium-sized FTTx installations.

Fiber parameters:

  • G.652D / G.657A1 standard

  • Fiber diameter: 125 µm

  • Primary coating: 250 µm

  • Excellent microbending resistance

Compliance with ITU-T G.652D and G.657A1 allows flexible network design.

HDPE outer sheath

The 1.0 mm thick HDPE sheath provides:

  • UV resistance

  • Protection against mechanical damage

  • Long service life in outdoor conditions

The cable has an overall diameter of 8.3 mm, making it easier to blow into microducts.

Mechanical strength of 1.8 kN

The value of 1.8 kN represents a maximum installation tensile load of 1,800 N. This is a key parameter when pulling cables through ducts.

Crush resistance

The cable withstands:

  • 1,000 N during operation

  • 2,000 N under static conditions

This ensures reliable protection even in demanding ground conditions.

Minimum bending radius

  • During installation: 20 × cable diameter

  • During operation: 10 × cable diameter

Thanks to the G.657A1 fibers, the cable maintains its transmission performance even at smaller bending radii.

Environmental resistance

UV resistance

The black HDPE sheath is resistant to solar radiation. This allows temporary exposure above ground without the risk of degradation.

Operating temperature range:

  • Installation: -10°C to +60°C

  • Operation: -20°C to +70°C

  • Transport: -40°C to +70°C

This wide temperature range makes the cable suitable for Polish climatic conditions.

Applications in FTTH and FTTx networks

The OPTIX Saver ZW-NOTKtsdDb 24F (2x12) fiber optic cable, 1.8 kN, 8.3 mm diameter, is used in:

  • FTTH networks

  • FTTB installations

  • Telecommunications ducts

  • Residential area backbone networks

  • Industrial networks

Thanks to its dielectric construction, it can be installed near power infrastructure.

Specyfikacja
grupa-produktow:
Ilość tub:
Ilość włókien:
Rodzaj światłowodu:
Średni czas dostawy:
Średnica:
Wytrzymałość na rozciąganie:
