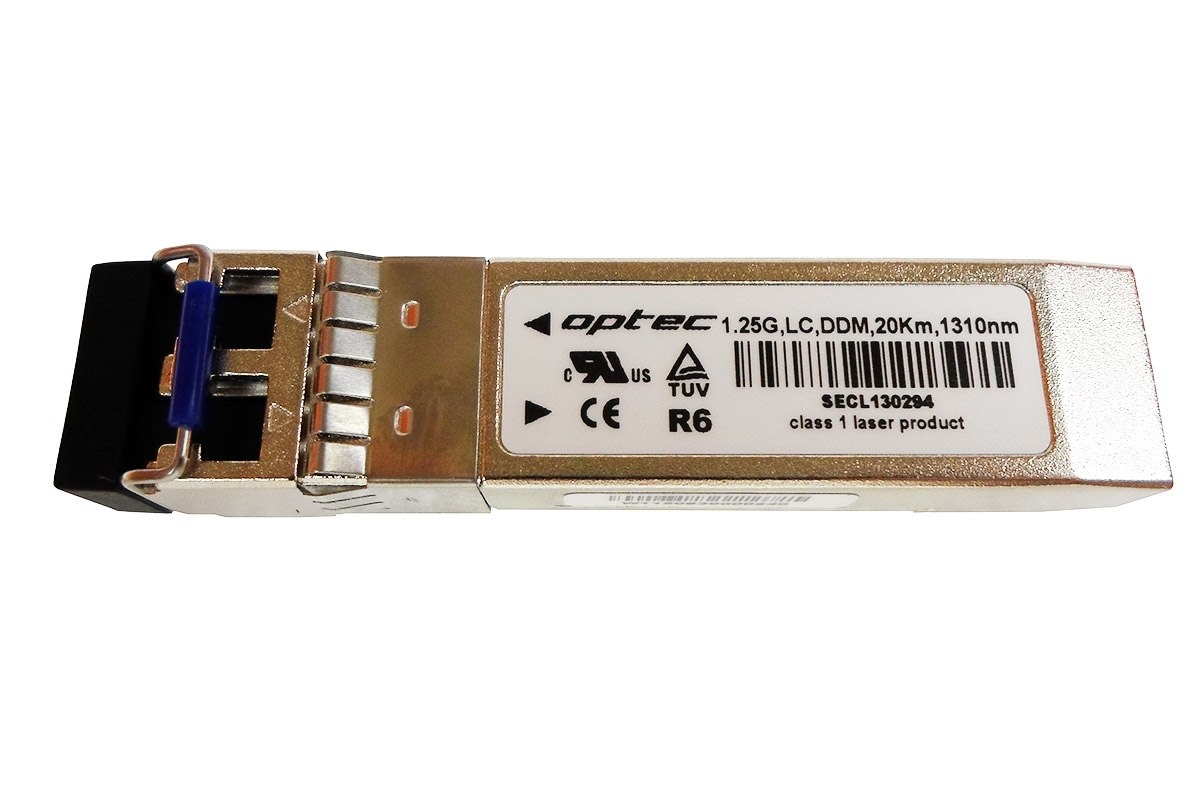

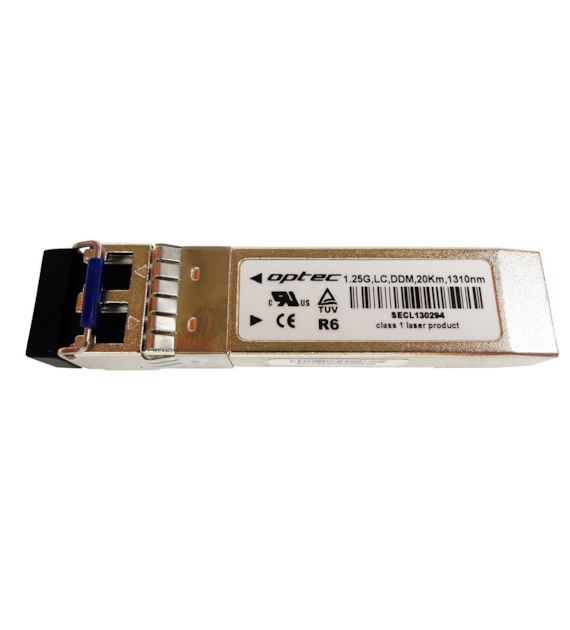

OPTEC SFP Dual LC 20km TX1310 DDM Module

OPTEC SFP Dual LC 20km TX1310 DDM Module

The OPTEC SFP Dual LC 20km TX1310 DDM module is a high-quality optical transceiver designed to ensure reliable data transmission over long distances. Equipped with two LC Single-Mode ports with a throughput of 1.25 Gbps each, this module offers excellent performance and reliability in various network environments.

Technical Specifications:

• Port: 2x 1.25 Gbps LC Single-Mode
• Transmitting Wavelength (TX): 1310 nm
• Receiving Wavelength (RX): 1310 nm
• Port Range: 20 km
• Port Cabling: 8.3/125, 8.7/125, 9/125, 10/125 µm
• Warranty Period: 36 months
• Module Type: SFP
• Digital Diagnostic Monitoring (DDM): Yes

The DDM (Digital Diagnostic Monitoring) function, compatible with Cisco DOM (Digital Optical Monitoring), allows monitoring key module performance parameters, such as optical signal transmit power, optical signal receive power, operating temperature, power supply voltage, and laser current. Utilizing the DDM function helps prevent failures and speeds up diagnosing optical network issues.

Advanced performance parameters and a robust module design make the OPTEC SFP Dual LC 20km TX1310 DDM module an ideal solution for demanding network applications, providing reliability, performance, and versatility in operation.
