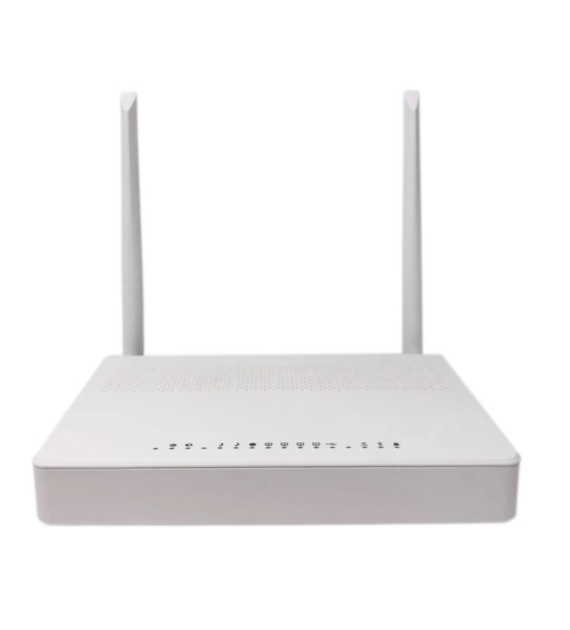

NUCOM-NC-WRT764TGV

The NuCom NC-WR644GACV router is an advanced residential gateway from the NuCom dual-band family. It features dual-band WiFi technology supporting 802.11a/n/ac (5GHz) standards. Equipped with external antennas and MIMO 2*2 technology, it provides a strong and reliable wireless connection.

NuCom NC-WR644GACV

Wireless Standards:

• IEEE802.11a/n/ac, 5GHz
• IEEE802.11b/g/n, 2.4GHz

Transmission Speed:

• 5GHz: Up to 867 Mbps
• 2.4GHz: Up to 300 Mbps

Operating Frequency: 2.4GHz and 5GHz

Receiver Sensitivity:

• 5GHz:
  • 11a 6Mbps: -96dBm
  • 11a 54Mbps: -79dBm
  • 11ac HT20: -71dBm
  • 11ac HT40: -66dBm
  • 11ac HT80: -63dBm
  • 11n HT20: -72dBm
  • 11n HT40: -71dBm
• 2.4GHz:
  • 11g 54M: -77dBm
  • 11n HT20: -74dBm
  • 11n HT40: -72dBm

Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption

VoIP Standards: SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711

VoIP Features: Call forwarding, Call waiting, Call blocking, Three-way conference, etc.

Interfaces:

• 4 x 10/100/1000Mbps LAN Ports
• 1 x 10/100/1000Mbps WAN Port
• 2 x FXS Ports for VoIP
• 1 x USB3.0 Port
• 1 x Power Connector

Buttons:

• Power On/Off Button
• WPS Button
• WiFi Button
• Reset Button

Power Supply: DC 12 V 2 A

Antennas: 2 x 5dBi Directional Antennas for 2.4GHz/5GHz

Software Features:

• WAN: Dynamic IP/Static IP/PPPoE, Bridge
• DHCP: Server, Client, DHCP client list, Address reservation
• QoS: WMM, Bandwidth control
• Port Forwarding: Virtual server, Port triggering, UPnP, DMZ
• VPN Pass-through: PPTP, L2TP, IPSec
• Access Control: Parental control, Local management control, Host list, Access schedule, Rule management
• Firewall Security: DoS, SPI Firewall, IP address/MAC address/Domain filter, IP and MAC address binding
• USB Sharing: Samba (Storage)/FTP server/Media server/Printer server/DLNA
• Management: Remote management via TR069 by Felix-Alea
• Internet Protocol: IPv4, IPv6

Environment:

• Relative humidity: 10% ~ 90%, non-condensing
• Storage humidity: 5% ~ 95%, non-condensing
• Certifications: CE, RoHS
