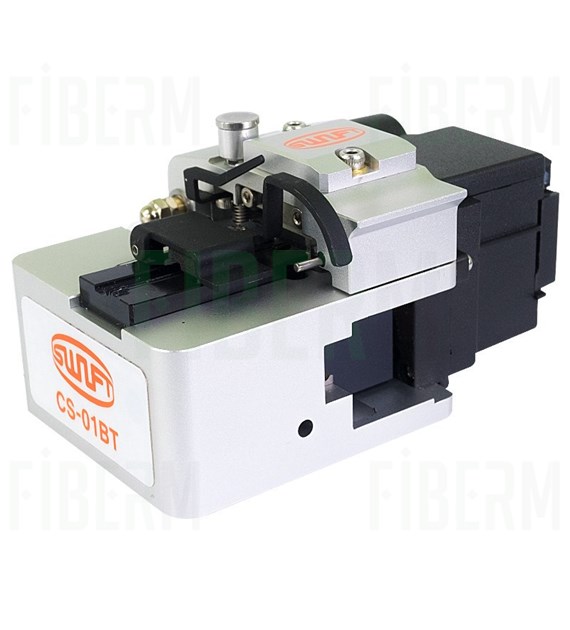

The CS-01BT is a high-quality fiber optic cleaver developed by UCL Swift (Ilsintech). It is the most popular model in the manufacturer’s lineup and is standard for most fusion splicers of this brand. Combining exceptional precision, automation, and durability, it is one of the most valued tools among fiber optic network installers and service technicians.
Single Action System – the fiber holder closes and the cut is made with a single movement, significantly speeding up and simplifying work.
Full Automation – the cleaver is equipped with an automatic scrap collector and an automatic blade rotation mechanism.
Automatically Rotating Blade – 24 working positions allow up to 75,000 precise cuts per blade (type BI-07). Rotation can be enabled or locked by the user.
Quiet and Smooth Operation – thanks to a special shock absorber, the device works without sudden vibrations, increasing the lifespan of the mechanism.
Universal Holder – the standard fiber holder supports 250 µm, 900 µm, and INDOOR cables up to 3 mm. A built-in ruler makes it easier to set the cutting length.
SOC Compatibility – compatible with holders for SOC fusion splice connectors.
| Category | Description |
|---|---|
| Fiber diameter | 125 µm |
| Cable diameter | 250 – 3000 µm |
| Cleave angle | 90° ± 0,5° |
| Cleave length | 5–24 mm, SOC: 7,5 mm, ribbon: 10 mm |
| Blade lifespan | 75,000 cleaves |
| Dimensions | 90 × 58 × 50 mm |
| Weight | 276 g |
The blade in the CS-01BT is factory-set and does not have height adjustment. The blade rotation system can be switched manually – it is recommended to keep the function turned off and activate it only to move the blade to the next position. This provides full control over wear and maximizes blade lifespan.
