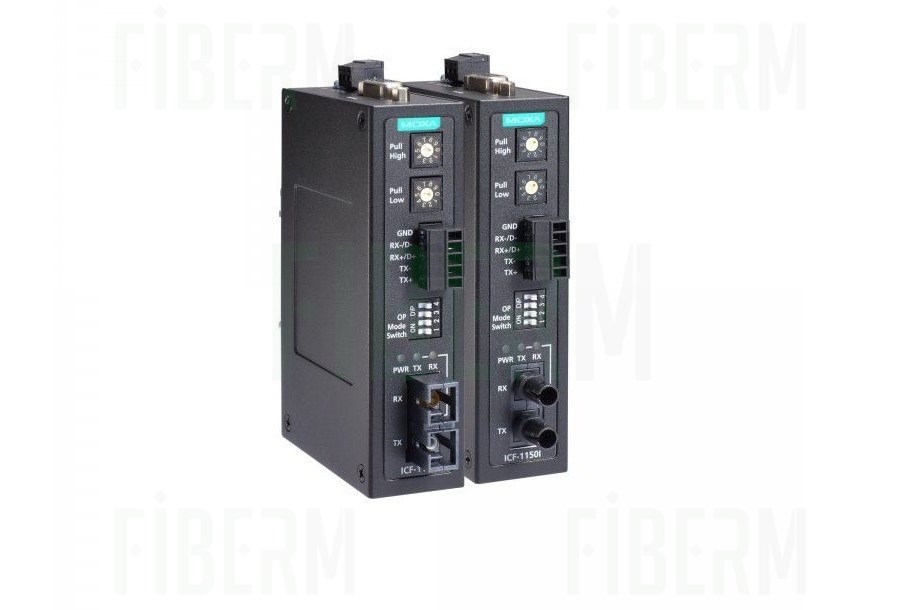

MOXA ICF-1150-M-SC media konwerter RS-232/422/485 na światłowód jednomodowy złącze SC

Moxa ICF-1150 Fiber Optic Converter – Reliable Data Transmission up to 40 km

The Moxa ICF-1150 is an advanced RS-232/422/485 fiber optic converter designed to provide stable and secure long-distance communication. The device extends transmission distances up to 5 km over multimode fiber or up to 40 km over single-mode fiber, making it an ideal solution for industrial applications that require high reliability and excellent resistance to electromagnetic interference.

Three Independent Communication Ports

The ICF-1150 features three independent communication ports:

• 1 × RS-232 (DB9)

• 1 × RS-422/485 (screw terminal)

• 1 × Fiber optic port (SC or ST)

Thanks to its data forwarding capability between all ports, the converter can simultaneously support multiple communication interfaces. For example, an RTU Master can be connected to the RS-232 port, while Slave devices communicate through the RS-485 port and fiber optic connection, simplifying the deployment of extensive industrial communication networks.

Ring Topology Support

Like the popular TCF-142 model, the ICF-1150 supports ring topology, increasing system reliability while reducing installation costs. If one communication link fails, data transmission is automatically rerouted through the alternate path, ensuring uninterrupted network operation.

Key Features and Benefits

• Supports RS-232, RS-422, and RS-485 (2-wire and 4-wire) interfaces

• Data rate: 50 bps to 921.6 Kbps

• Transmission distance:
  – Up to 5 km (multimode fiber)
  – Up to 40 km (single-mode fiber)

• 15 kV ESD protection on all signal lines

• Operating temperature range:
  – Standard model: 0°C to 60°C
  – Industrial (T) model: –40°C to +85°C

• Compact aluminum housing (30.3 × 70 × 115 mm)

• 12–48 VDC power input with low power consumption

• Compliant with EMC, EMI, EMS, UL, and IEC standards

• High reliability – MTBF: 792,085 hours (Telcordia, GB)

Applications

The Moxa ICF-1150 Fiber Optic Converter is ideal for use in:

• Industrial automation and SCADA systems

• Power and energy infrastructure

• Industrial data communication networks

• Applications requiring immunity to electromagnetic interference and reliable operation in harsh environments

Package Contents

• 1 × Moxa ICF-1150 Converter

• 1 × Installation Guide

• 1 × Warranty Card
