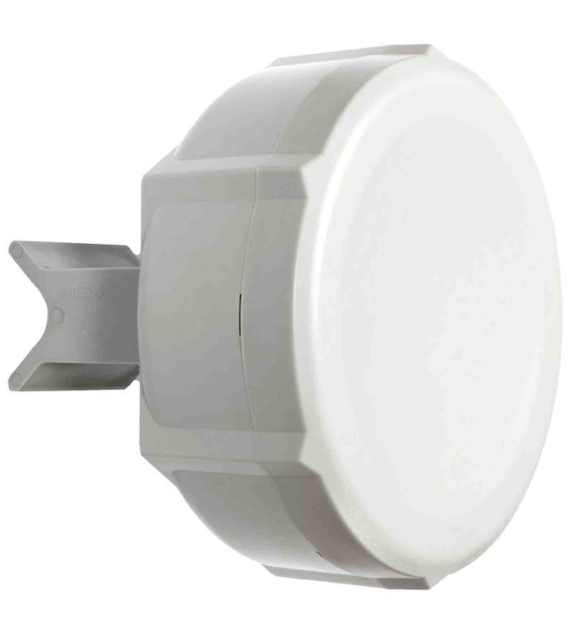

The MikroTik RouterBoard SXT Lite5 is a complete CPE (Customer Premises Equipment) device operating in the 802.11 a/n standard with 2x2 MIMO. The device features a Fast Ethernet port and an integrated radio module. SXT Lite5 operates in the 5GHz band and is equipped with a dual-polarization antenna with a gain of 16dBi and a polarization separation of 35dB. The Level 3 license allows the device to be used as a client station (CPE) or for point-to-point connections. The platform is compatible with the MikroTik Nv2 TDMA protocol, enabling connections with twice the bandwidth compared to the standard 802.11n protocol.

The device can be wall-mounted using the quickMount Extra bracket.

Key Features:

• Operates in the 5 GHz band
• Integrated antenna with a gain of 16 dBi
• Dual polarization
• Applications: client device or point-to-point connections
• Standards: 802.11 a/n
• PoE power supply: 8 - 32 V
• RouterOS operating system with Level 3 license

Radio Module: Built-in, Atheros 5GHz 802.11a/n 2x2 MIMO
ESD protection on each RF port up to 10kV
CPU: Atheros AR9344 600MHz
RAM: 64MB DDR2
Ethernet: 1x Fast Ethernet, L2MTU frame size up to 4076
Additional features: Reset button, speaker
LEDs: Power LED, Ethernet LED, signal strength indicator
Power Supply: Power over Ethernet (PoE): 8-30V DC.
Kit includes: 24V DC 0.8A power supply and passive PoE adapter
Dimensions: 140 x 140 x 56 mm, Weight: Without packaging and cables 265g
Power consumption: Up to 8W
Operating temperature: -30C to +80C
Operating System: MikroTik RouterOS, Level 3 License
Package contents:

• RBSXT5nDr2 device with integrated antenna
• Mounting hardware for mast, mounting strap, PoE adapter, power supply
• Certifications: FCC, CE, ROH

Antenna Type: Panel, dual-polarization
Frequency Range: 5.17 - 5.825 GHz
Gain: 16 ± 2 dBi
VSWR max: 1.7:1
3dB Beamwidth Horizontal: 25 °
3dB Beamwidth Vertical: 25 °
Polarization: Dual Linear (V-pol, H-pol)
Polarization Separation: 35 dB
