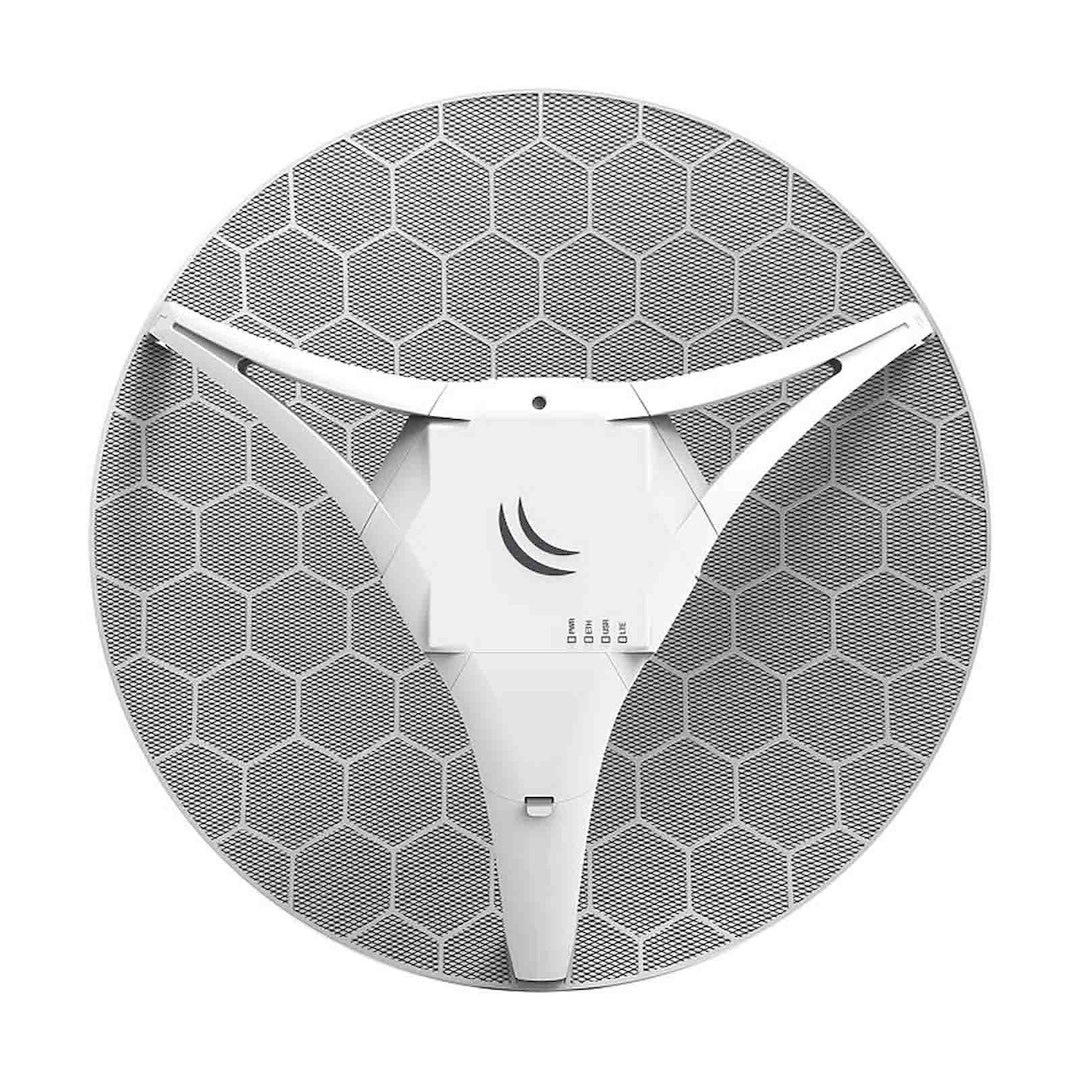

Mikrotik RouterBoard LHG LTE kit

MikroTik RouterBoard LHG LTE Kit

The MikroTik RouterBoard LHG LTE kit is a new model from MikroTik's LHG series, designed for 2G, 3G, and LTE networks. This kit includes an integrated radio and antenna with a gain of 21 dBi. It features one SIM slot, a QCA9531 processor clocked at 650 MHz, and 64 MB of RAM. The maximum theoretical throughput for LTE Category 4 is 150 Mbps for download and 50 Mbps for upload.

Supported Frequency Bands:

• 2G: 2 (1900 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
• 3G: 1 (2100 MHz), 2 (1900 MHz), 5 (850 MHz), 8 (900 MHz)
• LTE TDD: 38 (2600 MHz), 40 (2300 MHz)
• LTE FDD: 1 (2100 MHz), 2 (1900 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz)

Key Features:

• Compatibility: Works on 2G, 3G, and LTE bands.
• Throughput: Up to 150 Mbps download, 50 Mbps upload.
• Ethernet Port: 1 x 10/100 Mbps fast Ethernet port.
• SIM Slot: 1 mini SIM slot.
• Antenna Gain: 21 dBi.
• Beamwidth: 25°.
• Power Supply: PoE 12 - 57 V DC (passive or 802.3af/at).
• Operating System: RouterOS Level 3.

Specifications:

• Processor: QCA9531, 650 MHz.
• RAM: 64 MB.
• Built-in Memory: 16 MB Flash.
• Ethernet Ports: 1 x 10/100 Mbps fast Ethernet.
• SIM Slot: 1 mini SIM.
• LTE Category: 4 (150 Mbps downlink / 50 Mbps uplink).
• 3G Category: R7 (21 Mbps downlink / 5.76 Mbps uplink).
• 2G Category: Class 12.
• Antenna Gain: 21 dBi.
• Beamwidth: 25°.
• PoE Input: Yes (passive or 802.3af/at).
• Input Voltage Range: 12 - 57 V DC.
• Max Power Consumption: 6 W.
• Dimensions: 391 x 391 x 227 mm.
• Operating Temperature: -40 to 60°C.
• Operating System: RouterOS Level 3.

Included in the Kit:

• LHG LTE device
• 24V, 0.38A power adapter
• PoE injector
• 2 metal mounting straps
• Mounting kit (K-LHG kit)

The LHG LTE kit is designed for outdoor use. Its directional antenna requires alignment towards the nearest base station. The kit comes with all necessary mounting accessories and a power adapter with PoE injector, providing a complete solution for robust and high-performance connectivity in remote areas.
