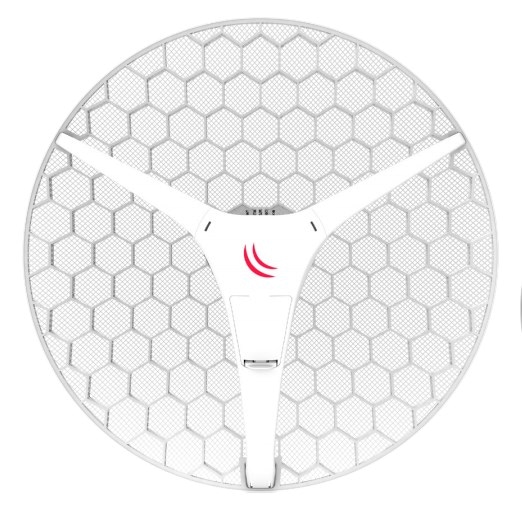

The MikroTik LHG HP5 is a more powerful version of the popular LHG 5. The device combines a grid antenna with an integrated radio with high transmit power (High Power). The HP version features a transmit power of up to 28 dBm (630 mW), whereas the regular version has a power of up to 25 dBm (316 mW). The antenna remains the same as in the basic LHG 5 - with a diameter of 391 mm and a gain of 27.5 dBi. Thanks to the increased power, the LHG HP5 should achieve better wireless transmission range, both in point-to-point and point-to-multipoint connections.
The offered product utilizes the 802.11a/n standards and 2x2 MIMO technology. The maximum theoretical throughput of the connection is 300 Mbps. The main beam has a slightly larger width than the LHG 5 - 10.4°. The device is powered by passive PoE, with a voltage range of 10 - 28 V DC. The kit includes a 24 V / 0.38 A power supply and a PoE injector. The LHG HP5 can be used for point-to-point connections or as a client device in point-to-multipoint connections.
Key Features:
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
