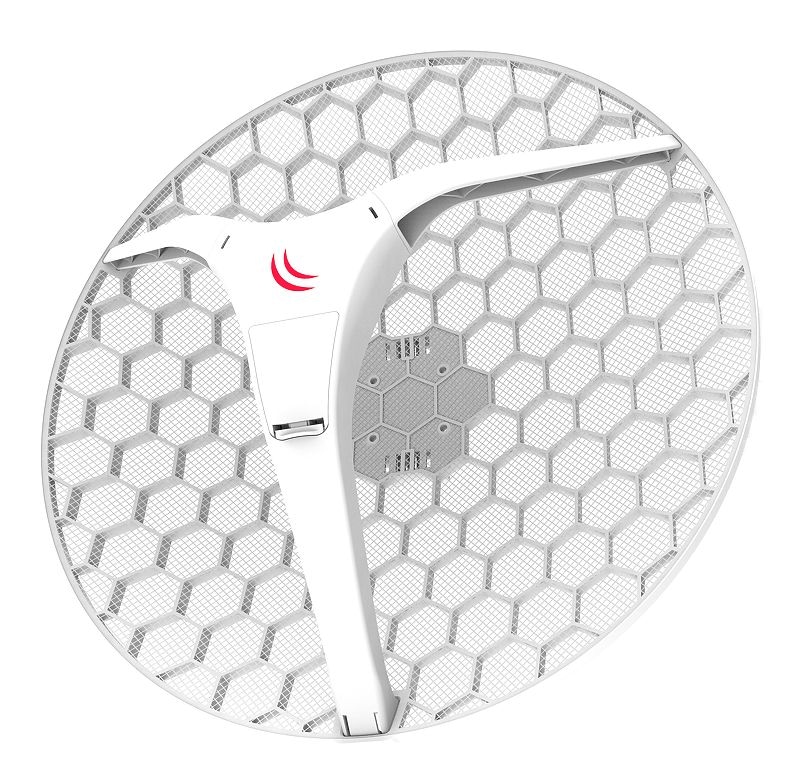

Mikrotik RouterBoard LHG 5 ac

Prices

Net retail price
260,57 PLN /szt.

Gross retail price
320,50 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Data
Symbol
RBLHGG-5acD
Barcode
0000000143
Basic unit
szt.
Manufacturer name
Mikrotik
Inventory status

Description

The MikroTik LHG 5 ac is a device operating in the 5 GHz band and utilizing the modern 802.11ac standard. It combines a grid antenna with an integrated radio, eliminating the need for pigtails and thereby reducing signal loss caused by cables. The 5acD version stands out with its highly efficient IPQ-4018 processor featuring 4 cores clocked at 716 MHz and 256 MB of RAM. The antenna used has the same diameter as other LHG models - 391 mm - and provides a gain of 24 dBi.

The product utilizes dual polarization and 2x2 MIMO (dual-chain) technology. The theoretical throughput (in the 802.11ac standard) can reach up to 866 Mb/s, with a maximum transmit power of 25 dBm. An additional advantage is the very narrow main beam, approximately 7° wide. The device is powered via passive PoE with a voltage range of 10 - 30 V DC.

The LHG 5 ac is well-suited for point-to-point connections requiring high throughput. It can also be effectively used as a client device over longer distances where other solutions may not perform well.

Key Features:

  • Operates in the 5 GHz band
  • Radio with a power of 25 dBm
  • Utilizes the 802.11ac standard
  • Dual polarization (2x2 MIMO / dual-chain)
  • Grid antenna with a diameter of 391 mm and a gain of 24 dBi
  • Powered via PoE (voltage range 10 - 30 V DC)
  • RouterOS system with Level 3 license
  • Model: RBLHGG-5ACD

Specifications:

  • Processor: IPQ-4018
  • Clock Speed: 716 MHz
  • Number of Processor Cores: 4
  • RAM: 256 MB
  • Built-in Memory: 16 MB Flash
  • Ethernet Interface: 1 gigabit Ethernet port 10/100/1000 Mb/s
  • Frequency Range: 5150 - 5875 MHz
  • Gain: 24 dBi (± 0.5)
  • Main Beam Width: 7°
  • Polarization: Dual, vertical and horizontal (2x2 MIMO / dual-chain)
  • PoE Input: Yes, passive PoE
  • Voltage Range: 10 - 30 V DC
  • Maximum Power Consumption: 7 W
  • Shock and Vibration: ETSI300-019-1.3, ETSI, EN 302 326 DN2
  • IP Protection Rating: IP55
  • Wind Load: 186 N at 205 km/h
  • Operating Temperature: From -40 to 70 degrees Celsius
  • Operating Humidity: 5%-95% non-condensing
  • Dimensions: Diameter: 391 mm, Depth: 222 mm
  • Weight: 560 g

Package Contents:

  • Device
  • 24 V, 0.38 A Power Supply
  • Gigabit PoE Injector
  • 2 Metal Hose Clamps
  • Mounting Kit Components (K-LHG kit)
