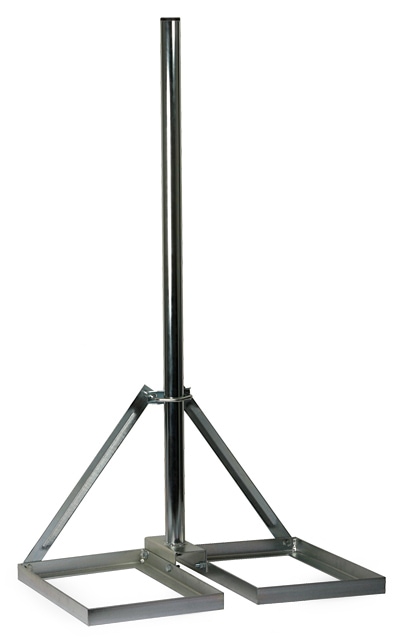

The ballast mast bracket is non-invasive and designed for mounting television antennas as well as data transmission antennas. It allows for antenna installation on flat, sturdy surfaces in locations where there is no possibility of intervening in the roof covering or its structure.
The mast is adapted to be weighted down with concrete blocks measuring 38x24x12, 38x20x12, and 30x24x12 [cm] in quantities ranging from 4 to 8 pieces. The placed blocks should be secured together using plastic tape.
The stand bracket is made of 3mm thick pressed steel sheet with a welded steel tube, galvanized, and attached to the mast base measuring 39x25 cm. The mast length is 1m. A plastic cap prevents water from entering the interior.
Technical specifications:
Mast length: 1 [m]
Total base dimensions: 58x41 [cm]
Inner dimension of each block holder: 39x25 [cm]
