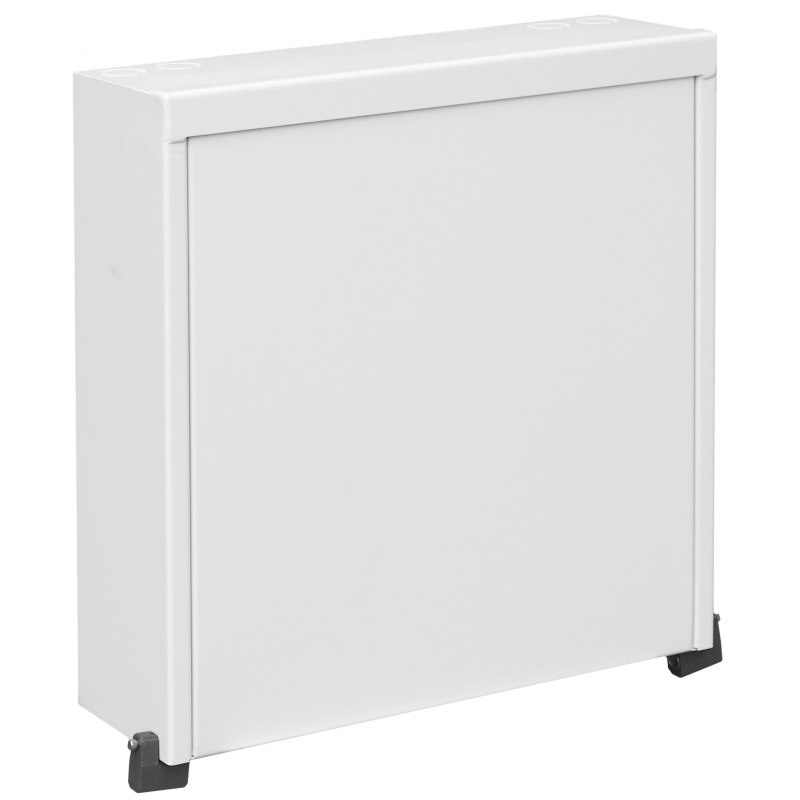

MANTAR Szafka agregacyjna dla sieci FTTH 144J M-52/52/16 ST 72 x SC Duplex

The MANTAR aggregation cabinet for FTTH networks is a reliable solution that provides protection and efficient management of passive fiber optic network elements. Here are the main features of the product:

• It serves as a mechanical enclosure for passive fiber optic network elements, ensuring necessary protection against damages.
• Designed for wall mounting, especially in areas prone to vandalism and break-ins, ensuring safety and durability of the installation.
• It enables termination of cables coming into the building from the telecommunication central office, vertical cables, and installation of optical splitters, facilitating the efficient operation of the network.
• The switch features a commutation field with a capacity of 144 J (72 SC Duplex openings), providing sufficient flexibility in managing connections.
• Equipped with organizational mounts for easy cable stockpiling, facilitating space management and preventing cable tangling.
• Features cable entry points from both the top and bottom, with two openings in the upper corners and one at the bottom (sealed with plugs), providing flexibility in cable routing.
• Constructed from 1.5 mm thick steel sheet, ensuring solidity and durability of the structure.
• Powder-coated in RAL7035 color - light gray, with a thick structure, providing an aesthetic appearance and additional protection against corrosion.
• Secured with two Barcz T-13 locks with an 8mm diameter pin, ensuring safety and protection against unauthorized access.

Technical specifications:

• Height: 520 mm
• Width: 520 mm
• Depth: 160 mm
• Weight: 15 kg

The MANTAR aggregation cabinet is not only a practical but also a solid and secure solution, ideal for FTTH networks, providing comprehensive protection and efficient management of telecommunication infrastructure.
