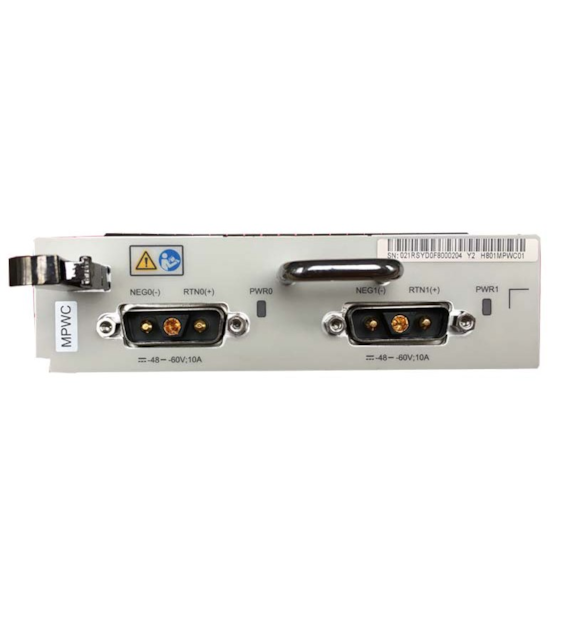

Huawei MPWC Moduł zasilający 48V do MA5608T

Huawei MPWC is an advanced power module designed specifically for supplying power to the optical line terminal MA5608T, operating at a voltage of -48 V. The MPWC board is equipped with a dual DC power supply, facilitating the essential power delivery to the device.

The optical line terminal MA5608T represents an innovative solution from Huawei, designed as a terminal supporting GPON technology. This sophisticated equipment provides support for two service slots and can handle a maximum of 4096 subscribers. In the case of the MA5608T, there is also the option of the main control board MCUD/MCUD1, along with the redundancy of a single power socket accommodating both AC and DC power sources. The board is distinguished by eight harness lines, enhancing its overall functionality. YCICT, as a supplier, additionally offers extra packet lines to cater to diverse needs and requirements.

Key features of the MPWC module include the support for two -48 V DC power channels, power port filtering and protection functions, input power detection, and error monitoring. Furthermore, the module enables the reporting of protective alarms, enhancing the overall system reliability.

Technical specifications of the MPWC module:

• Brand: Huawei
• Model: MPWC
• Ports: 3 power ports V3
• Function: Operates on -48 V Power
• Connection: Use a -48 V power cable to connect this port to the power distribution unit (PDU).
• Input Voltage: -38.4 V to -72 V DC
• Power Consumption: Static: 2.5 W, Maximum: 2.5 W
• Dimensions: 35.56 mm x 251.70 mm x 132.10 mm

Huawei MPWC is not just a power module but a crucial element of the system, ensuring stable and reliable power supply for the optical line terminal MA5608T. With its advanced features and robust construction, this product meets the highest standards in the field of telecommunications technology.
