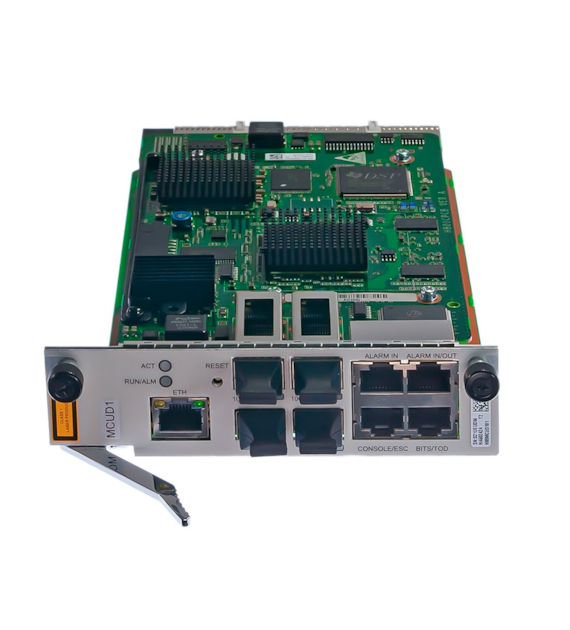

The Huawei MCUD1 10G card, designed for the 5608T base station, offers extensive capabilities in uplink communication. It includes an uplink module with four SFP slots, comprising two SFP+ slots, and a control module with an Ethernet port.
MCUD1
Expanded Possibilities with the Uplink Card
The uplink control board is designed for MA5608T OLT terminals, also known as Mini Control Unit Boards. The OLT terminal allows the use of two such boards and provides load-sharing functionality.
Intuitive Interfaces for Better Control
The Huawei MCUD1 10G card stands out with remarkable functionality. Ease of use is enhanced through remote management via the Fast Ethernet port. The card features two SFP slots, two SFP+ slots (10 Gb/s), and two control LEDs: ACT and RUN/ALM. Additionally, it offers a control module with four RJ-45 standard ports (Alarm IN, Alarm IN/OUT, Console/ESC, BITS/TOD).
The Huawei MCUD1 is a control/uplink board dedicated to MA5608T OLT terminals (Mini Control Unit Board type). It has 2 SFP+ slots (10 Gb/s) and 2 SFP slots, along with 1 Fast Ethernet port, 1 input alarm port (RJ45), 1 output alarm port (RJ45), 1 AUX RJ45 port, and 1 console/LSC port, all in RJ45 standard. In the OLT terminal, two such control/uplink boards can be used, enabling load-sharing functionality.
SFP/SFP+ modules are not included in the package and must be purchased separately, depending on individual needs.
Specification:
Uplink Ports: 2 SFP slots (1 Gb/s), 2 SFP+ slots (10 Gb/s)
Management/Alarm Ports: 1x Fast Ethernet, 1x RJ45 console port, 1x BITS/TOD RJ45 port, 1x input alarm port (RJ45), 1x output alarm port (RJ45)
Maximum Frame Size: 2052 B, Jumbo Frames: 9216 B
BITS Clock Signal Input/Output: Yes
1PPS+TOD Signal Input/Output: Yes
Stratum-3 Clock: Yes
General Functions: System control and management board, Load-sharing and active/standby switchover mode, Local and remote management (via serial and ETH ports), Work monitoring, Synchronization with Ethernet clock, Temperature information and high-temperature alarm, Fan monitoring and management, Alarm inputs and outputs
Power Consumption: Static: 29 W, Maximum: 33 W
Operating Temperature: -25°C to +65°C
Dimensions: 233 mm x 134 mm x 34 mm
