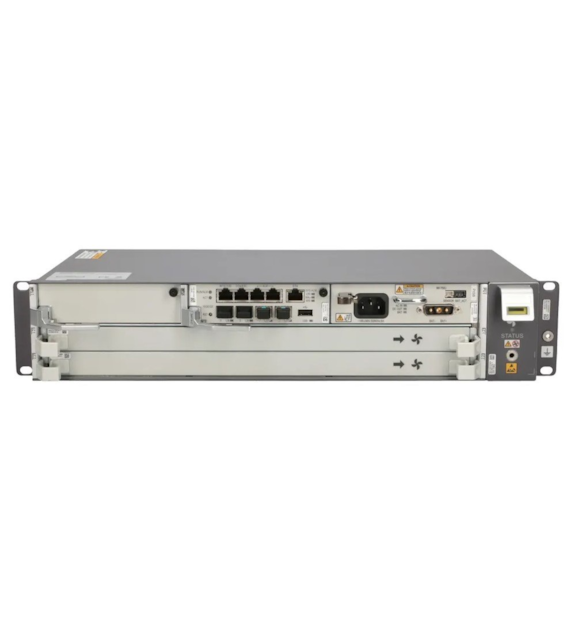

The Optical Line Terminal (OLT) Huawei MA5800-X2 is an advanced access platform with a throughput of 40 Gbit/s. Utilizing a distributed architecture, it is a next-generation Optical Line Terminal (NG-OLT) supporting a wide range of ultra-broadband services, Fixed Mobile Convergence (FMC), and intelligent features such as SDN-based virtualization. The Network Processor (NP) in MA5800 accelerates the deployment of new services, meeting the demand for diverse services, including wholesale and retail service providers.

Key Features of MA5800-X2:

• Switching Throughput: 480 Gbit/s
• Address Table Size: 262 entries
• Routing Entries: 64,000
• Switching Layer: L2/L3
• Number of GPON Ports: 32
• Number of 10G-PON Ports: 16
• Number of GE/FE Ports: 96
• Number of E1 Ports: 64
• Number of 10G Ethernet Ports: 16
• Routing Protocols: BGP, BGP4+, IS-IS, OSPF, OSPFv3, RIP
• Communication Protocol: ARP
• Input Voltage AC: 100/240 V
• DC Voltage Range: -38.4 - 72 V
• Dimensions (mm): 442 mm x 268.7 mm x 88.1 mm

The MA5800-X2 offers flexibility and scalability, allowing operators to gradually increase the data exchange capacity of the OLT system as the number of services for users grows. Its ability to handle 32 GPON ports, 16 10G-PON ports, and 96 GE/FE ports makes it ready to support diverse FTTx services
