Huawei MA5800-X2 OLT 10GE, Zasilanie AC, 2x MPSG, 1x PISB

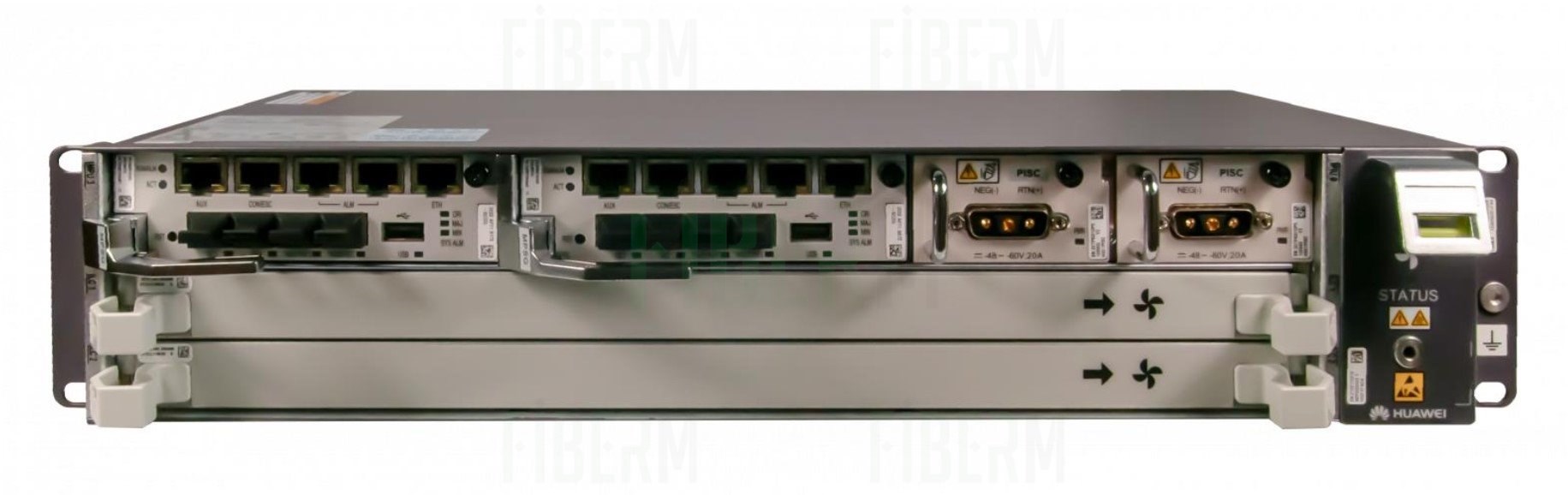

Huawei MA5800-X2 – Next-Generation OLT Terminal for Future-Ready Networks

The Huawei MA5800-X2 is a new-generation Optical Line Terminal (OLT), designed to enable ultra-fast, reliable, and flexible fiber optic networks. Despite its compact form factor, this high-performance device supports simultaneous operation of GPON, XG-PON, and XGS-PON technologies, meeting the growing demands of telecom operators, ISPs, and large-scale enterprise networks.

With its distributed switching architecture and intelligent network management features, the MA5800-X2 significantly boosts infrastructure performance while ensuring stable and fast connections for end-users—even during peak hours. It's the perfect solution for deploying IPTV, VoD, 4K/8K streaming, and high-speed broadband services for homes, businesses, and institutions.

Key Features:

• High Throughput: Up to 480 Gbps switching capacity (load balancing), with 80 Gbps per service slot

• Large Capacity: Supports up to 262,000 MAC addresses, 65,000 IPv4 routes, and 32,000 ARP entries

• PON Compatibility: Supports GPON, XG-PON, XGS-PON — up to 32 ports of each type

• Advanced Network Features: L2/L3 protocols, multicast, QoS, MPLS, IPv6, VXLAN

• Card Compatibility: Works with various service cards including H901GPHF (GPON), H901XGHD (XGPON), and H901TWED (XGSPON)

• Compact Design: 2U height, 19” rack mountable, easy to integrate into existing cabinets

• Power Supply: 48V/60V DC, with redundant power modules included

Typical Applications:

• Deployment of FTTH and FTTB high-bandwidth access networks

• Delivery of voice, data, IPTV, VoD services

• Mobile backhaul for cellular networks

• Wholesale and retail service separation for multi-tenant networks

Package Contents:

• 1 × Control board H901MPSG (2 × GE, 2 × GE/10GE)

• 2 × Power supply boards PISC (DC 48V)

• 1 × Fan module

Networking Features:

• L2: VLAN, PPPoE+, DHCP Option 82, SVLAN + CVLAN, ACL

• L3: RIP, OSPF, IS-IS, BGP, VRF, ARP, DHCP relay

• Multicast: IGMP v2/v3, MLD v1/v2, PIM, IPTV multicast VLAN

• QoS: WRED, HQoS, PQ/WRR, traffic shaping, policing

• MPLS/PWE3: MPLS LDP, RSVP-TE, BGP IP VPN, TDM/ETH emulation

• IPv6: Dual stack, DHCPv6, forwarding, relay

• SDN / Virtualizacja: VXLAN, integration with SDN controllers

One Device – Many Possibilities

As a multi-service terminal, the MA5800-X2 allows operators to deliver a wide variety of services from a single platform. It supports the convergence of fixed and mobile networks (FMC), making it ideal not only for residential fiber deployment but also as a backhaul solution for mobile networks. It's a perfect fit for urban, campus, residential, and industrial environments.

Modern Management & Full Flexibility

The MA5800-X2 is powered by a modern, programmable Network Processor (NP), allowing for rapid deployment of new features and services. This future-ready architecture adapts to evolving market and technology requirements, while also supporting SDN and virtualization for centralized, intelligent network resource management.

Operators can easily scale services by adding service modules or cards depending on project or regional requirements. The MA5800-X2 can serve thousands of users, providing seamless video streaming, stable voice connections, and high-speed data—all on a unified fiber access platform.

Compact, Efficient & Future-Proof

Its 2U chassis and 19” rack-mount design allow for easy integration into existing telecom infrastructure. Despite its small footprint, the MA5800-X2 delivers outstanding capabilities—each service slot handles up to 80 Gbps, ensuring non-blocking data transmission.

The included set comes complete with a control board, redundant power supplies, and fan module. Huawei ensures wide compatibility with multiple GPON, XGPON, and XGSPON cards, making it a flexible investment for growing network demands.

The Perfect Choice for Operators and Integrators

If you're looking for a reliable, scalable, and advanced OLT terminal to deliver modern broadband and IPTV services, the Huawei MA5800-X2 is an excellent choice. It combines powerful performance, rich features, and compact design to ensure your network is ready for tomorrow’s challenges.
