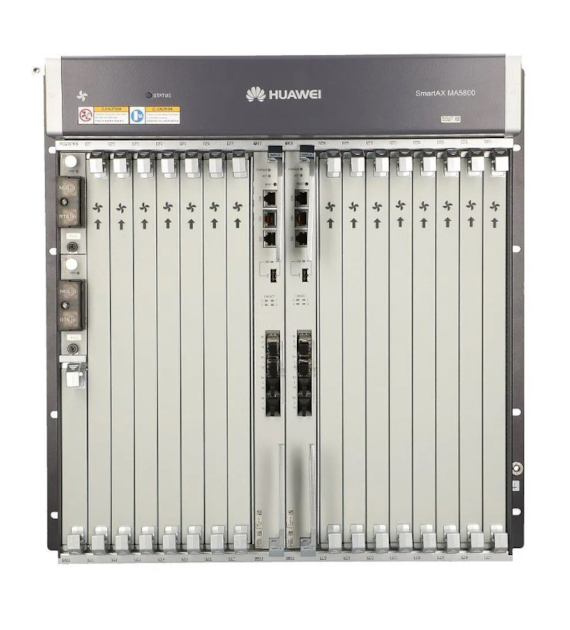

The MA5800-X15 is a Huawei OLT terminal, compatible with GPON/XGPON networks. The chassis is designed in accordance with the Rack 19" standard, with a height of 11U, allowing for the installation of up to 15 service boards. Huawei's new OLT series supports up to 8 times more MAC and ARP addresses than popular models like the MA5683T. It boasts an impressive switching capacity of 7 Tb/s, with a maximum throughput per service board slot reaching 200 Gb/s when using the H901MPLB control board or 100 Gb/s with the H901MPLA control board. The product is also compatible with 16-port GPON boards (2.5 Gb/s), offering numerous possibilities for network expansion.
The terminal stands out with its modern eOTDR feature, allowing the utilization of optical modules with a built-in PON reflectometer with a maximum split of 1:64. Additionally, it supports the DOCSIS 3.1 standard.
The standard package includes:
- 2x MPLA
- Fan board
- H901CIUA board
General specifications:
- MA5800-X15
- Switching capacity: 7 Tb/s
- MAC addresses: 262143
- ARP/route table: 64K
- Max GPON ports: 240
- Max XGPON ports: 120
- Max GE/FE ports: 720
- Max 10G GE ports: 120
- Max E1 ports: 480
- Dimensions: 442 x 287 x 486 mm
- Operating temperature: -40 to 65°C
- Power supply voltage: 38.4 V to 72 V DC
Layer 2 features:
- VLAN+MAC forwarding
- SVLAN+CVLAN forwarding
- PPPoE Plus
- DHCP option82
Layer 3 features:
- Static routing, RIP, OSFP/OSFPv2
- IS-IS, BGP/BGP4+, ARP, DHCP relay, VRF
- MPLS and PWE3:
- LDP, RSVP-TE, MPLS OAM, tunnel PS, TDM/ETH PWE3
- PW Redundancy, MPLS, BGP IP VPN
IPv6:
- Dual-stack IPv4 and IPv6
- IPv6 Layer2 and Layer3 forwarding
- DHCPv6 relay
Multicast:
- IGMPv2, IGMPv3, IGMP proxy and snooping
- Multicast based on VLAN
QoS:
- Network traffic classification, prioritization
- Traffic policing based on trTCM, HQoS
- Traffic shaping, WRED, PQ/WRR/PQ+WRR, ACL
List of compatible boards:
Control boards:
- H901MPLB: 4x GE/10GE upstream, load sharing, 200 Gb/s per service board
- H901MPLA: 4x GE/10GE upstream, load sharing, 100 Gb/s per service board
- H901CKUA: Supports stratum-3 clock layer functions in collaboration with MPLB and MPLA
Uplink boards:
- H901NXED: 8x 10 GE, supports GE/10GE Ethernet transmission
Universal interface board:
- H901CIUA: Additional serial and alarm ports.
Service boards:
- H901GPHF: 16 GPON ports
- H901GPSF: 16 GPON ports
- H901XGHD: 8 asymmetrical XGPON ports 10 Gb/s / 2.5 Gb/s
- H901TWED: 8 symmetrical XGPON ports 10 Gb/s
- H901EDSH: 32-channel E1 board
- H901OGHK: 48 GE/FE ports
- H901OXHD: 8 optical 10GE ports
Power supply board:
Fan boards:
- H901FMLA: Powers fans, controls, and monitors their operation
- H901FMMA: Powers fans, controls, and monitors their operation
