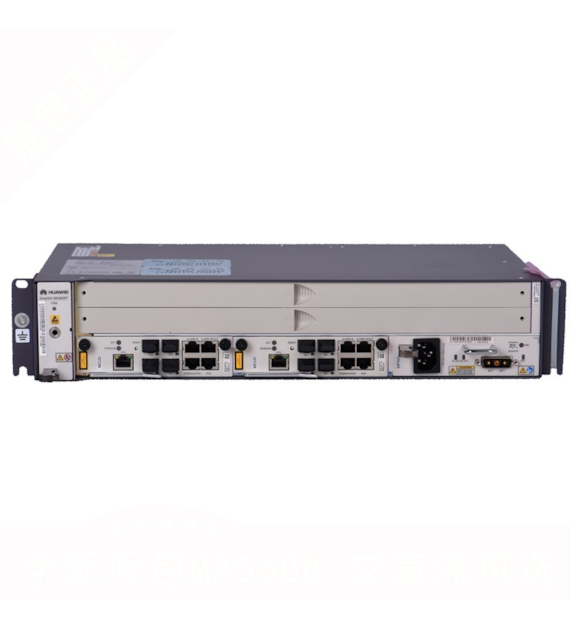

The Huawei MA5608T is a compact Optical Line Terminal (OLT) designed for GPON networks. It comes in a 2U-high housing with the ability to install a maximum of two service boards (GPON). The MA5608T can connect up to 4096 subscribers using 16-port service boards. The package includes an AC power board (100 - 240 V AC) and one control/uplink board type MCUD101 with 2 SFP+ slots (10 Gb/s) and 2 SFP slots (1.25 Gb/s).
Key Specifications:
- Switching capacity (backplane bus): 720 Gb/s
- Packet forwarding speed L2:
- 190 Mp/s in active/standby mode
- 380 Mp/s in load-sharing mode
- Switching capacity of the control board:
- 256 Gb/s in active/standby mode
- 512 Gb/s in load-sharing mode
- BER at full load: < 10 e-7
- Availability (in standard configuration): > 99.999%
- MTBF: ~ 45 years
- Management interfaces: Out of band RJ45, Console
- Uplink ports: 2x SFP+ and 2x SFP
- GPON ports: 16 GPON ports with C+ modules (GPFD board)
- AC Power Supply: Voltage range 100 - 240 V AC
- Operating temperature: -40 to 65°C
- Operating humidity: 5% - 95% RH
- Dimensions: 442 x 244.5 x 88.1 mm
Control Board Specifications:
- Switching capacity: 256 Gb/s in active/standby mode, 512 Gb/s in load-sharing mode
- Total throughput: 10 Gb/s in active/standby mode, 20 Gb/s in load-sharing mode
- MAC address table: 32,768
- Max users: 2048
- Max multicast users: 2048
- Max configurable multicast channels: 4096
- Max simultaneous multicast channels: 2000
- IPv4 Routing table: 5120
- IPv6 Routing table: 5120
- ARP table: 8192
- ACL rules: 896
- Max frame size: 2052 bytes (9216 bytes with jumbo frame)
- VRF (L3 VPN): Yes
- Operating temperature: -25 to 65°C
- Power consumption: Static: 29 W, Max: 33 W
- Dimensions: 233 x 134 x 34 mm
- Weight: 1 kg
AC Power Board Specifications:
- Input voltage: 100 - 240 V AC
- Input frequency: 50 - 60 Hz
- Battery port: Yes
- Output power: 400 W
- Additional features: Reverse battery connection protection, Deep discharge protection, Battery charging management
This OLT is the smallest Huawei OLT capable of serving up to 4096 users. The compact design and comprehensive specifications make it suitable for various GPON network deployment scenarios.
