Huawei HG8240H GPON ONT 4xGE

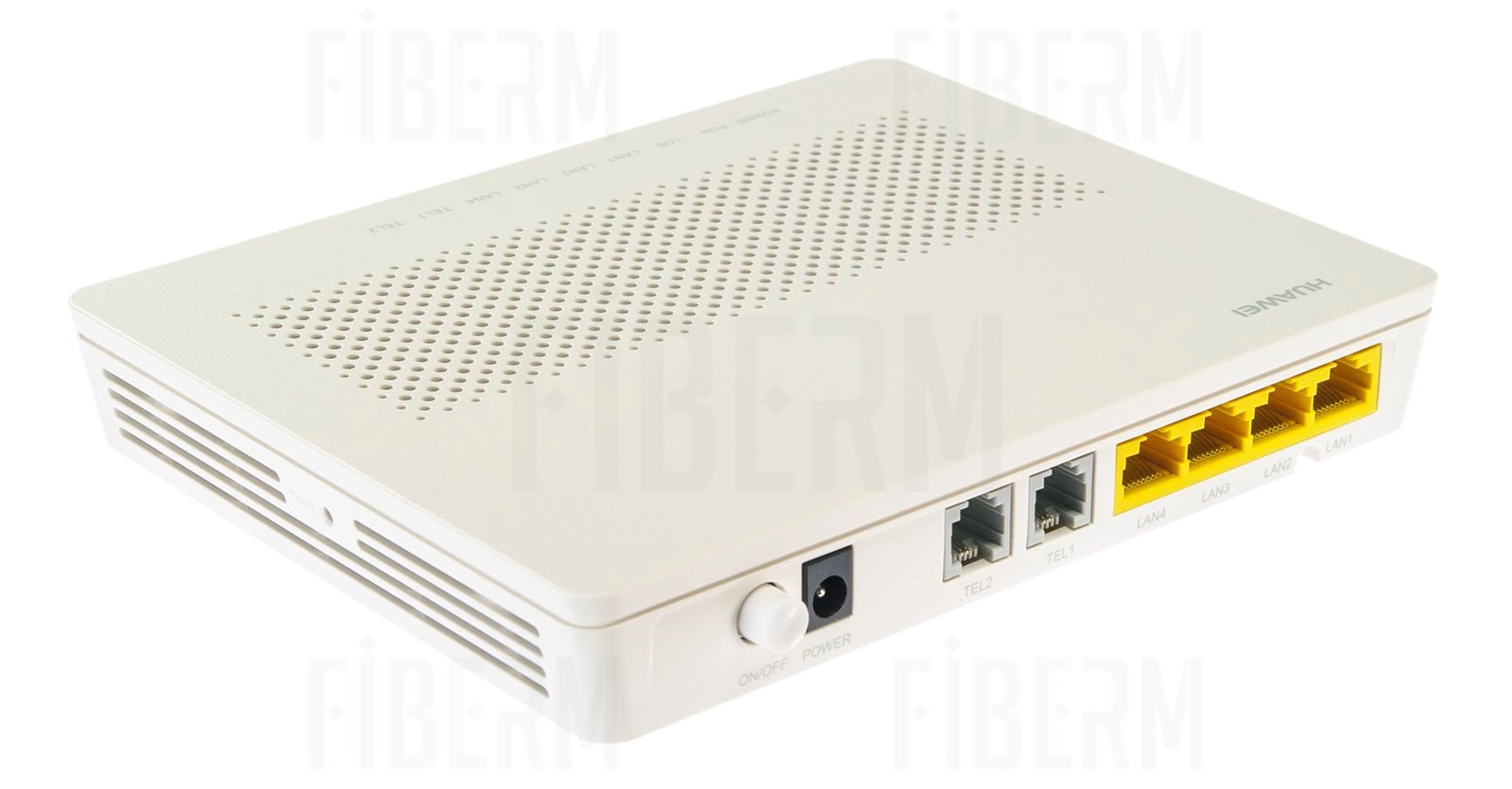

Huawei EchoLife HG8240H – GPON Terminal for Home and Office Use

The Huawei EchoLife HG8240H is a modern GPON Optical Network Terminal (ONT), designed for residential users and small office/home office (SOHO) environments. Installed on the customer side in FTTH (Fiber-To-The-Home) networks, it provides high-speed internet access, voice services, and HD video transmission.

The device supports upstream transmission speeds of up to 1.244 Gbit/s and downstream speeds of up to 2.488 Gbit/s, ensuring a stable and reliable fiber-optic connection.

Key Features Ethernet Ports: 4 x Gigabit Ethernet (RJ45) for high-speed wired network connections Telephone Ports (POTS): 2 x POTS for voice service support VoIP Protocols: Supports SIP and H.248 protocols Remote Management: Configurable via OMCI and web-based GUI IPv4/IPv6 Dual-Stack: Future-proof network support with full IPv6 compatibility Multicast Routing: Facilitates efficient video streaming and IPTV services NAT Throughput: Supports NAT routing speeds up to 900 Mb/s, ensuring secure and fast traffic management

Additional Features

• Plug & Play: Automatically configured through Huawei’s network management system – no manual setup required

• Remote Diagnostics: Includes loop testing on POTS ports, remote fault localization, and mass upgrades (up to 2,000 devices per hour)

• Link Monitoring: Supports Ethernet OAM (IEEE 802.1ag) for quick issue detection and network fault isolation

• Energy Efficient: Highly integrated SOC chipset reduces power consumption by up to 25%

Technical Specifications

Interfaces GPON: Class B+, receiver sensitivity: -27 dBm LAN Ports: 4 x 10/100/1000M (RJ45) VoIP Ports: 2 x POTS (supports SIP and H.248) GPON Connector Type: SC/UPC Wavelength: Upstream 1310 nm / Downstream 1490 nm Authentication: By serial number, password, or SN + password Flexible Mapping: GEM ↔ TCONT

Physical Parameters

• Dimensions: 176 mm x 138.5 mm x 28 mm

• Weight: 240 g

• Operating Temperature: 0°C to 40°C

• Humidity: 5% to 95% RH, non-condensing

• Power Supply: 100–240 V AC, 50–60 Hz

The Huawei EchoLife HG8240H is a powerful and reliable GPON terminal, ideal for both home and business FTTH installations. With support for gigabit Ethernet, VoIP, IPv6, and remote management, it delivers high performance, flexibility, and ease of use.

An excellent solution for demanding users.
