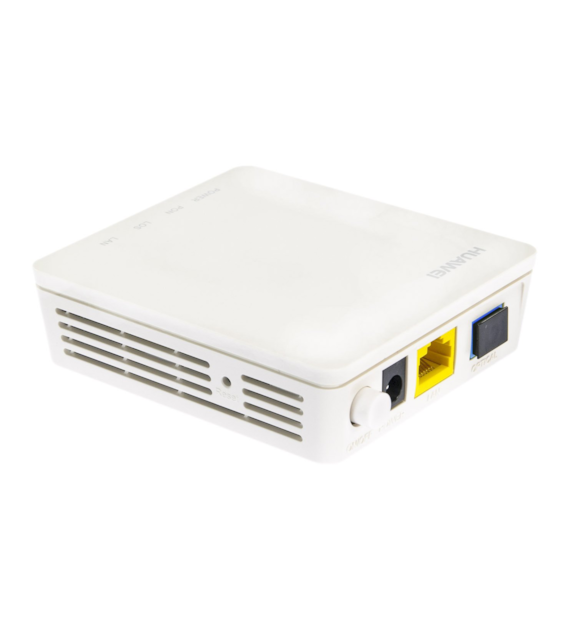

Huawei HG8010H GPON ONT 1xGE

EchoLife HG8010H is a GPON/EPON ONT terminal designed for indoor use in FTTH networks. It features a gigabit Ethernet port that allows customers to fully utilize the capabilities offered by the fiber optic network. This terminal enables comfortable internet browsing, high-quality VoIP calls, and HD video streaming. With an excellent price-to-quality ratio, the device is well-suited for FTTH networks as a subscriber terminal.

Switching between EPON/GPON modes can be done through the command line terminal. By default, the device operates in GPON mode.

Key Features:

• GPON/EPON Class C+ port
• Gigabit Ethernet port
• Plug and play - no additional configuration required
• Remote management from OLT level
• Energy efficiency
• Compact size

Specification:

• Model: HG8010H
• Network Interface: GPON/EPON (SC/UPC)
• User Interface: Gigabit Ethernet port
• LED Indicators: POWER / PON / LOS / LAN
• Power Supply: 11 - 14 V DC, 0.5 A
• Input Voltage: 100 - 240 V AC, 50 - 60 Hz
• Average Power Consumption: 3 W
• Maximum Power Consumption: 3.5 W
• Dimensions: 82x90x27 mm
• Weight: 500 g
• Operating Temperature: 0 to 40 degrees Celsius
• Operating Humidity: 5% - 95% RH non-condensing

GPON Port:

• Class B+
• Receiver Sensitivity: -27 dBm
• Wavelength: 1310 nm upstream, 1490 nm downstream
• Wavelength Blocking Filter (WBF)
• Flexible mapping between GEM ports and TCONT
• Authentication using SN or password, G.984.3
• Bidirectional FEC
• SR-DBA and NSR-DBA

Ethernet Port:

• VLAN tags based on port
• Transparent transmission of 1:1 VLAN, N:1 VLAN, and VLAN QinQ
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2

QoS Function:

• Port bandwidth limit
• 802.1p prioritization
• SP/WRR/SP+WW
• Broadcast packet limit
• Flow mapping based on VLAN ID, port ID, or 802.1p

Multicast:

• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, multicast packet removal downstream
• Limiting IGMP/MLD protocol packets

Management:

• OMCI messages
• Active/passive ONT rogue detection function
• PPPoE/DHCP simulation testing
• OMCI/Web UI
• Backup and software rollback
• 802.1ag Ethernet OAM
• Optical connection measurements and diagnostics
• Loopback testing
