Huawei EN8255X6s-8X XGS-PON ONT 1x 10GE, 4x GE, 2x POTS, 1x USB, WiFi 6 AX6000 SC/APC

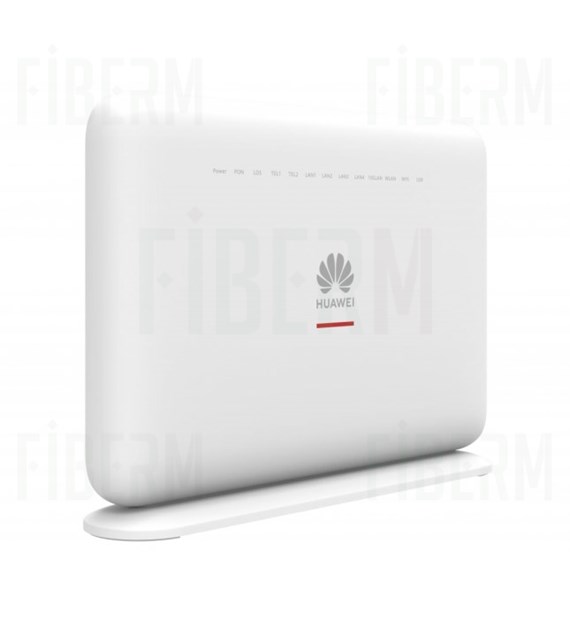

Huawei OptiXstar EN8255X6s-8X – Advanced ONT with XGS-PON and Wi-Fi 6 Support

The Huawei OptiXstar EN8255X6s-8X is a cutting-edge ONT terminal designed for use in XGS-PON fiber-optic networks. Leveraging the latest Wi-Fi 6 technology, it delivers high-speed broadband access, excellent performance, and wide wireless coverage. With its high bandwidth and advanced service support, this device provides a comprehensive solution for telecommunications operators and Internet service providers.

The device features one 10GE port, four GE ports, two POTS ports, one USB port, and dual-band Wi-Fi 6 (2.4 GHz and 5 GHz), ensuring users enjoy fast and stable connections for Internet, telephony, and 4K/8K multimedia streaming.

The EN8255X6s-8X ensures not only high performance but also network stability and quality through its built-in omnidirectional antennas (2 dBi gain), Beamforming, and BSS Coloring technologies. Additionally, it includes a USB 2.0 port for creating an FTP disk or sharing files via Samba.

Its compact dimensions and modern design make the Huawei EN8255X6s-8X ideal for various environments. Thanks to its high performance, wide range of features, and robust construction, it is the perfect ONT terminal for individuals and businesses seeking an advanced XGS-PON network solution.

Key Features and Advantages

Modern Wi-Fi 6 Technology

• IEEE 802.11ax support for enhanced performance and connection stability
• Dual-band Wi-Fi (2.4 GHz and 5 GHz) with 4x4 MIMO
• Support for OFDMA, MU-MIMO, and 160 MHz channel bandwidth
• Beamforming and BSS Coloring for optimized data transmission
• WPA3 support for improved wireless security

Advanced Network Capabilities

• Full IPv6/IPv4 support with NAT/NAPT functionality
• VLAN configuration support (1:1 VLAN, N:1 VLAN, QinQ VLAN)
• PPPoE, DHCP, and static IP support for flexible service configuration
• QoS support for traffic prioritization and bandwidth management

Easy Configuration and Management

• Remote management via OMCI, TR-069, and Web UI
• Dual-system software backup and rollback for increased reliability
• Visual home network management and Wi-Fi optimization
• Automatic IPTV diagnostics and neighboring AP scanning

• Technical Specifications Dimensions and Power Size (without base): 176 mm × 250 mm × 35 mm Size (with base): 186 mm × 250 mm × 52 mm Weight: approx. 705 g Power supply: 12 V DC, 3 A Max power consumption: 30 W Min power consumption: 12.5 W Power adapter input: 100–240 V AC, 50/60 Hz Ports and Interfaces XGS-PON: Support for N1/N2/E1 classes Receiver sensitivity: -28 dBm Wavelength: 1260–1280 nm (upstream), 1575–1580 nm (downstream) Data rates: 9.953 Gbit/s (upstream and downstream) FEC (Forward Error Correction) support Security: SN, password, mutual authentication LAN Ports: 1× 10GE RJ45 (auto-adapts to 100M/1G/2.5G/5G/10G) 4× GE RJ45 (10M/100M/1G) Supports VLAN and MAC management

  POTS Ports: 2× RJ11 – VoIP support Codecs: G.711A/μ, G.729a/b, G.722 Fax support: T.30, T.38, G.711 Emergency call support via SIP USB Port: USB 2.0 File sharing via SAMBA, DLNA, FTP Wi-Fi Features Dual-Band Wi-Fi 6: 2.4 GHz (4×4 MIMO) – up to 1147 Mbit/s 5 GHz (4×4 MIMO) – up to 4804 Mbit/s Support for 4096 QAM, OFDMA, MU-MIMO 2 dBi gain antenna WMM, multiple SSID, WPS support Security and Management Features SPI Firewall, MAC/IP/URL filtering WPA3 encryption for improved wireless security Remote configuration and diagnostics Automatic Wi-Fi optimization and roaming

• ---

  Deployment in Operator Networks

  The Huawei OptiXstar EN8255X6s-8X is the ideal solution for telecom operators seeking to deliver top-tier XGS-PON fiber-optic services combined with high-performance Wi-Fi 6 connectivity. With support for 10G speeds, advanced QoS features, and intuitive management, this terminal provides a complete platform for modern Internet, IPTV, and VoIP services.
